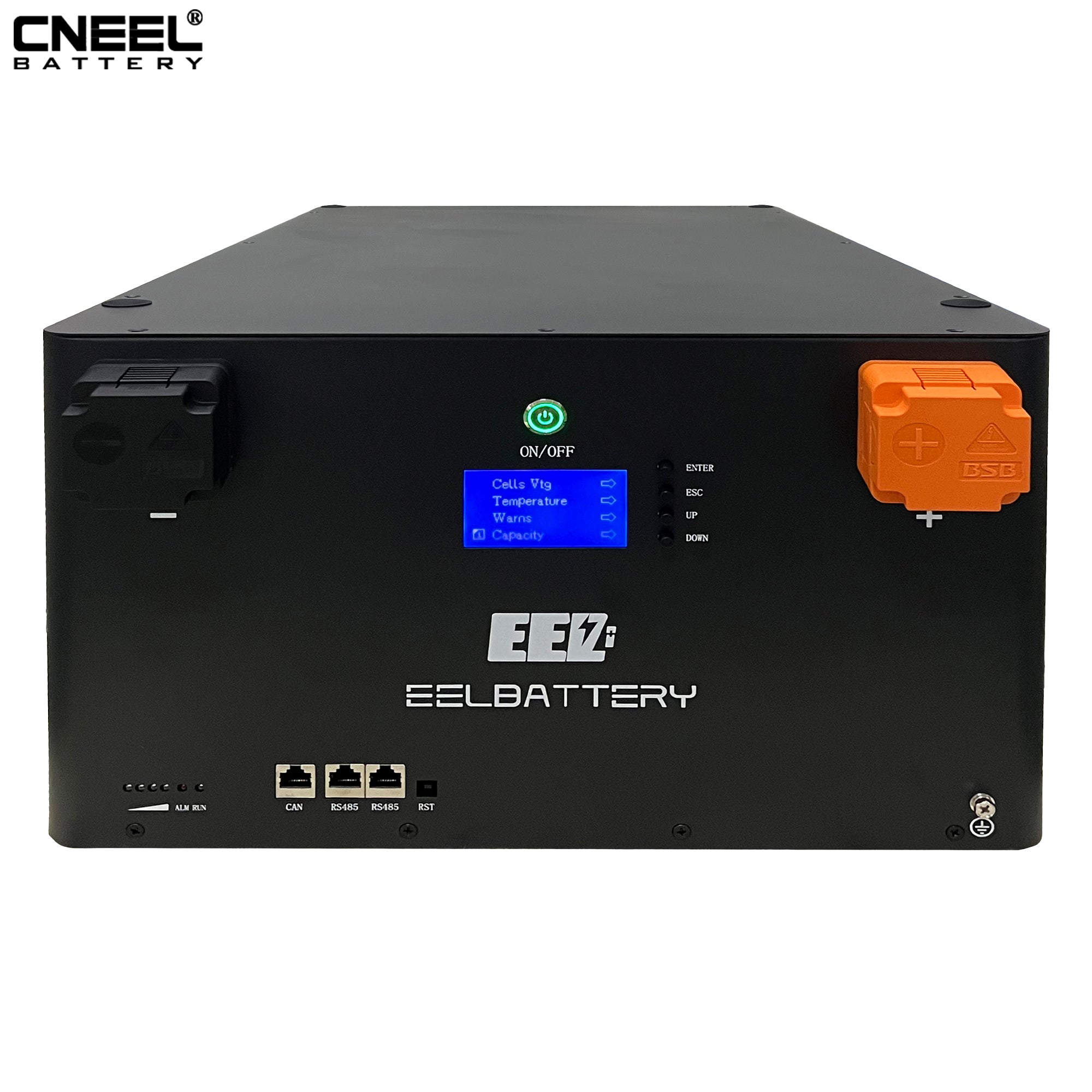

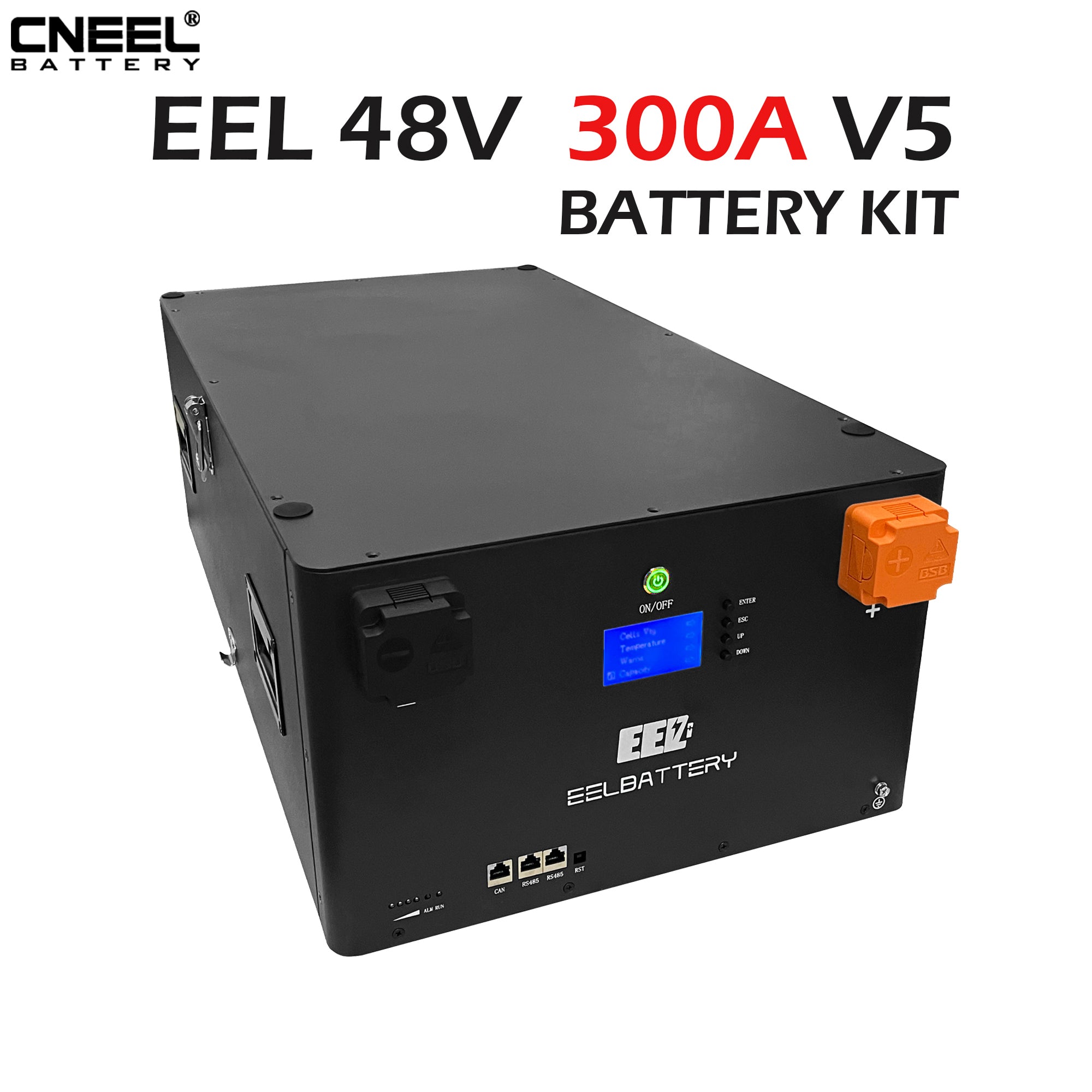

EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping
EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping
EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping

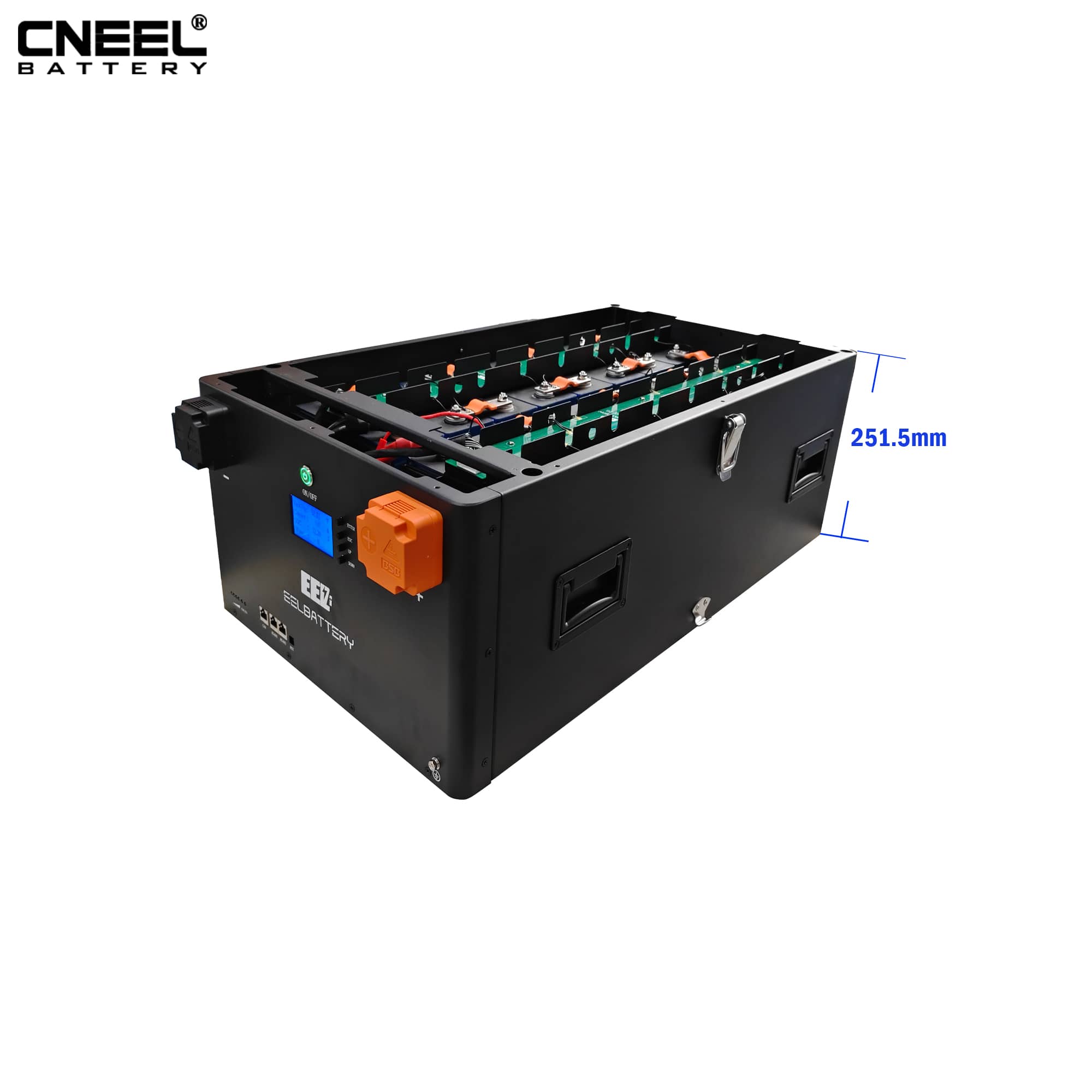

EEL 48V 300A battery case side view

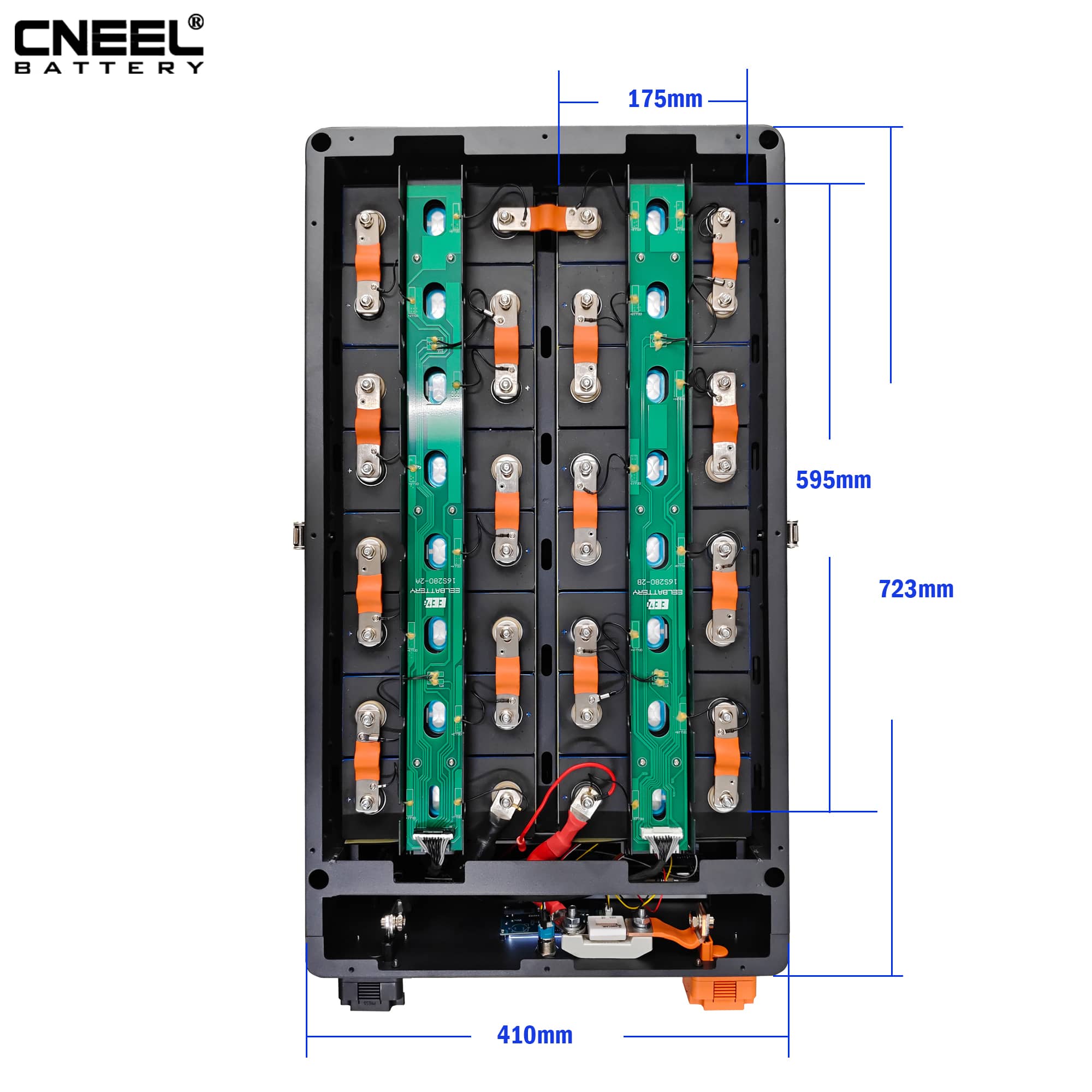

Thes specific dimensions of EEL 48V 300A DIY battery kit
EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping
EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping
EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping

EEL 48V V5 300A Stackable Battery kit with Buletooth BMS,Solar System,China Shipping

$589.00
Color
BMS Type
Busbar Type

Reliable shipping

Flexible returns

Specification

Suitable battery type:
280/302/304/306/314/330Ah square lithium iron phosphate battery cells
Number of battery cells required for assembly: 16
Communication method:

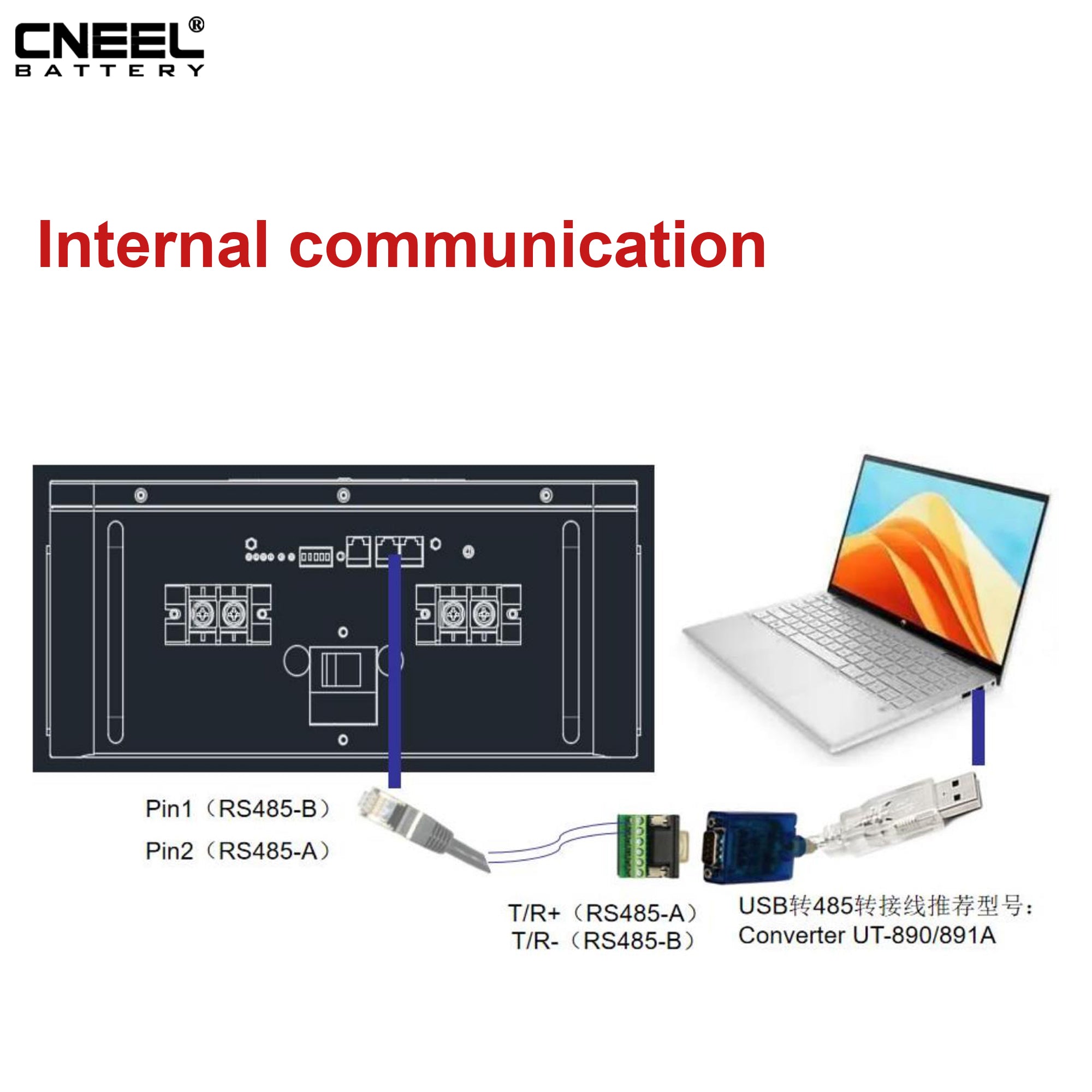

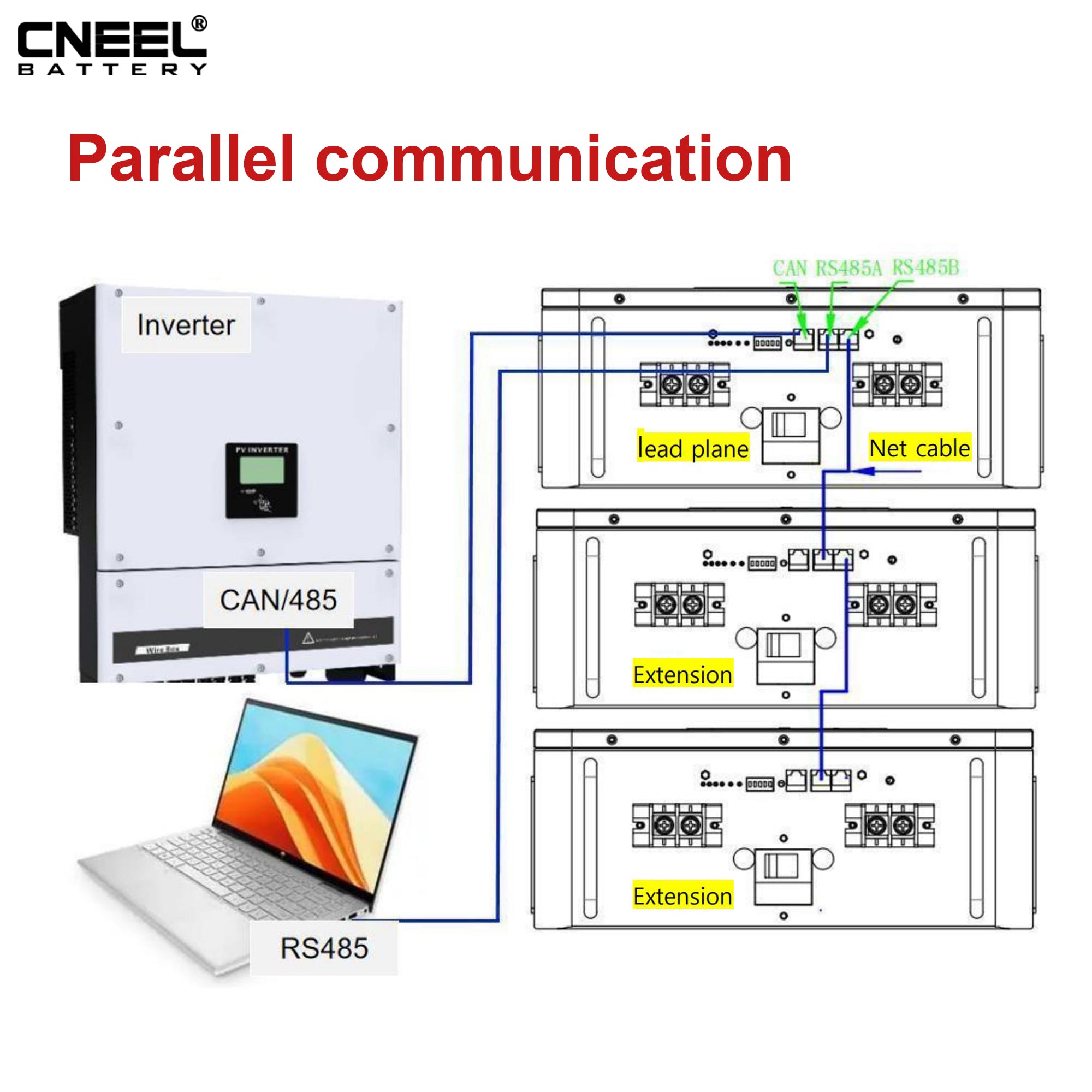

CANBUS and RS485 (compatible with both communication methods)
Battery management system (BMS):

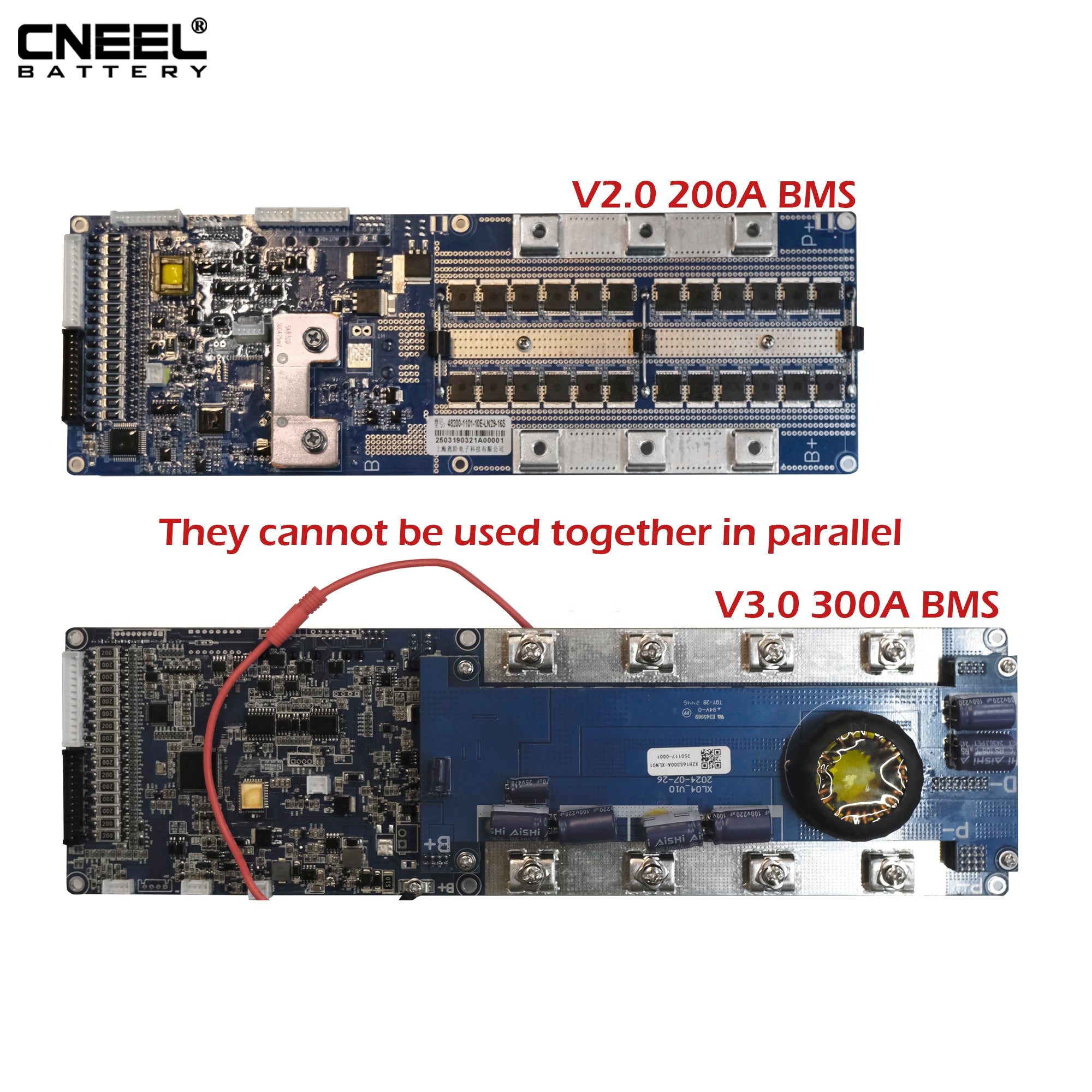

48V 16S Seplos V4.0 battery management system
Nominal voltage: 51.2V
Rated continuous charge current: 300A
Rated continuous discharge current: 300A
Battery pack type: stackable
OEM/ODM: optional
Weight: 29kg
Material: iron
Warranty: 5 years
Dimensions: 415*730*263mm (L*W*H)
Maximum number of parallel connections: 15

Parts list (excluding battery cells)

1 * Battery box (including bottom shell, front bracket, 2* top bracket, front panel, top cover)
1 * 350A professional fuse (including fuse holder)
18 * Epoxy board (between battery cell and battery box)
2 * PCB board (including copper sheet) for BMS and battery cell connection + 2 * matching EVA tape
1 * Weak current switch
1 * 48V 16S 300A Seplos V4.0 BMS battery management system + 2 * BMS connection line
1 * LCD display + 1 * LCD display connection line + 4 * Button cover
2 * Battery terminals (P+ terminal and P- terminal)
4* Silicone wire, 1* Special-shaped busbar (BMS connection)
15 * Flexible busbar (battery cell connection)
4 * Embedded handles
2 * Upper and lower lock buckles
20 * EVA Tape (between cells)
Other small accessories

BMS app download:

Iphone users please search "octopus bms lite" in the iOS App Store to download.


Android users please scan the QR code below to download.

BMS Software Download:

SEP 3.0 BMS PC software



Attention: Free DDP sea shipping from China with 40-50 working days for delivery.
