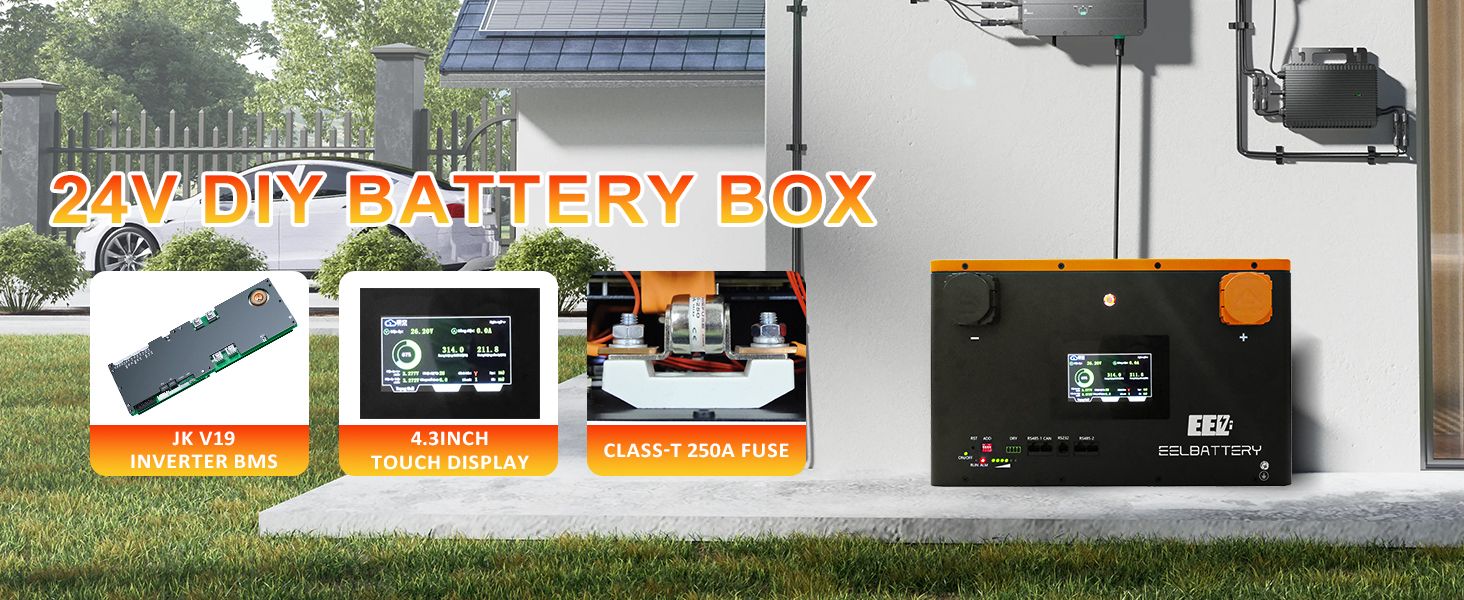

The EEL 24V JK V2 metal battery box, combined with 8 square lithium iron phosphate cells, can create a 24V high-performance mobile power supply that provides high-power stable discharge and supports communication with inverters.

EEL 24V V2 Battery Box With JK V19 150A/200A inverter Bluetooth BMS,For Golf Cart,RV,EV,Boat，China Stock

$439.00

The EEL BATTERY 24V JK V2 DIY battery box features a simple design and easy installation, equipped with the latest JK V19 battery management system. It houses eight prismatic lithium iron phosphate batteries, creating a highly efficient mobile power source with a continuous output current of up to 150A and a lifespan of over 6,000 cycles. It's also compatible with 90% of mainstream inverter brands, making it ideal for storing solar energy at home.

BMS Model V19-JK-PB2A16S15P(150A) V19-JK-PB2A16S20P(200A)

Heating Function No Yes

Busbar Type(cells connection) For cells with single m6 pole For cells with double hole pole

Reliable shipping

Flexible returns

Shipping Information:

1. Ocean shipping is the default shipping method from China(40-50 days), but rail and air shipping are also available.

Want to get your items faster? Contact us to change your shipping method.

2. Shipping is unavailable to some islands and countries.

EEL BATTERY 24V JKV2 DIY Battery Enclosure (400A Terminal Version)

Product Details:

- New 400A terminal design

- 24V steel battery enclosure for prismatic lithium iron phosphate batteries

- Compatible with 16-cell battery configuration (nominal voltage: 25.6V)

- Easy to assemble: All parts are included, and minimal tools are required. Suitable for beginners. - Includes a JK 150A/200A BMS, supporting CANBUS and RS485 communication

- Battery cell compatibility: 280Ah/314Ah cells (208*174*72mm)

- Parallel design: Scalable energy storage

- CE certified

- BMS specifications: 48V 16S 150/200A

- Case dimensions: 396*410*246mm

- Color options: Black

Fast Shipping from our China warehouse

Steel, high temperature resistant plastic

5-Year Free Return/Replacement Warranty

JK BMS Quick Setup

Learn how to set up your JK inverter BMS, including application and software operation instructions and troubleshooting.

⚠️ Important: Do not change your BMS password. This may lock you out of the device or even disable it. If you are locked out, please visit this guide to obtain your unlock code.

View full guide →

You May Want To Know

Brand: EEL BATTERY
BMS Model: JK-PB2A16S15P / JK-PB2A16S20P
Applicable Battery Cells: 280/306/314AH (208mm × 174mm × 72mm)
Dimensions: 396*410*246mm
Weight: 19KG
Parallel Capacity: 16

1 x 24V V2 JK battery box (1 x bottom case, 1 x main panel,
2 x PCB rails, 1 x compression baffle, 1 x top cover)
6 x rectangular epoxy boards
10 x short rectangular epoxy boards
2 x PCB boards
2 x matching EVA adhesive sponges (pasted on the bottom of the PCB rails)
1 x 4.3-inch LCD touch screen and matching switches
1 x 48V 16S JK BMS module (JK-PB2A16S15P/JK-PB2A16S20P)
2 x BMS wires
1 x 250A ANL fuse
1 x ceramic fuse holder
2 x 300A battery terminals (P+ terminal and P- terminal)
4 x customized flexible busbars
7 x flexible busbars (for battery connection)
2 x handles
10 x EVA adhesive sponges
Other small accessories

**Packaging Details**
- High-density custom-cut foam for enhanced battery protection
- 5-ply export-grade corrugated cartons, certified for hazardous materials
- Pre-shipment battery labeling on every unit
- Wooden crating available upon request for added transport security

**US/EU Warehouse (US Stock) – Fast Delivery**
- DDP (Delivered Duty Paid) service: No extra taxes; door-to-door delivery
- 3-7 day delivery via freight truck, DPD, FedEx, or UPS after dispatch

**China DDP Sea Shipping – Cost-Effective Option**
- DDP inclusive; no additional taxes; door-to-door delivery
- 45-60 day delivery via sea freight + local carriers (truck/DPD/FedEx/UPS)

**Shipping Restrictions**
- Unable to deliver to island addresses

**Tracking Information**
- Tracking updates provided after local carrier pickup
- Contact our support team anytime for assistance

**Payment Options**
We offer multiple payment methods to meet your needs:
- **PayPal / Credit Card / Visa**: Subject to a 5% international transaction fee. This option ensures faster processing and buyer protection.
- **Other Online Payment Platforms**
- **Bank Transfer (Wire/TT)**: Fixed bank fee of approximately $48–100 per transaction (varies by bank). Recommended for large orders to minimize overall transaction costs.

*Tip: For high-value purchases, we advise using bank transfers to reduce additional fees. Contact us anytime with payment-related questions.*

---

**Packaging Specifications**
- High-density custom-molded foam for superior battery protection
- 5-ply export-grade hazardous materials-certified cartons
- Insulating tape pre-applied on both terminals
- Pre-shipment cell-level data labeling on all units
- Wooden crating available upon request for enhanced transport security

---

**US/EU Warehouse (U.S. Stock) – Fast Shipping**
- **DDP (Delivered Duty Paid) Service**: No hidden taxes; door-to-door delivery
- **3–7 day delivery** via freight truck, DPD, FedEx, or UPS after dispatch

---

Questions and answers:

Q: Which BMS is in the 24V battery box?

A: We used a JK inverter BMS in the battery box, which is available in 150A and 200A versions, and comes with 2A balancing by default.

Q: Can I buy the finished 24v 314Ah battery?

A: Of course, we also sell assembled 24V batteries. They are carefully debugged and tested before shipment, saving you the trouble of doing it yourself.

Q: How do I set up the system?

A: The assembled battery can be connected to the JK BMS app for parameter setting. Specific steps and related instructions can be found in the JK BMS setup guide.

Q: I have my own logo, can you print my logo on the box?

A: Of course, we support product logo customization (quantity ≥ 5). If you need to order in large quantities, we can also provide a variety of colors for you to choose from.

DIY with Us

Looking for off-grid power? Build your own 24V 314Ah lithium iron phosphate battery! 🔋⚙️
In this DIY battery project, I'll show you how to safely and efficiently assemble a 24V 314Ah lithium iron phosphate battery pack using eight individual 3.2V 314Ah CALB cells and an EEL 24V V2 JK battery box. It's perfect for solar systems, inverters, e-bikes, portable energy storage systems, or backup power solutions.
