JK Inverter BMS Features

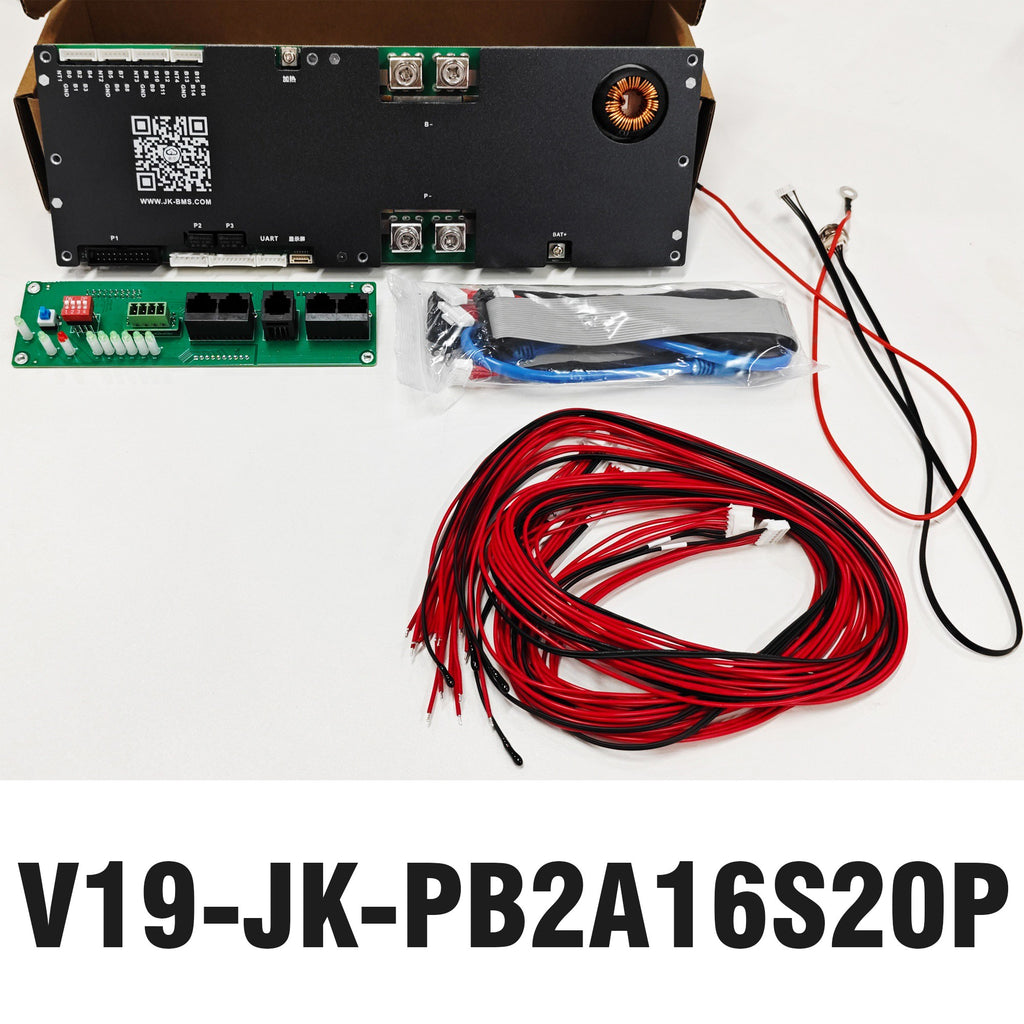

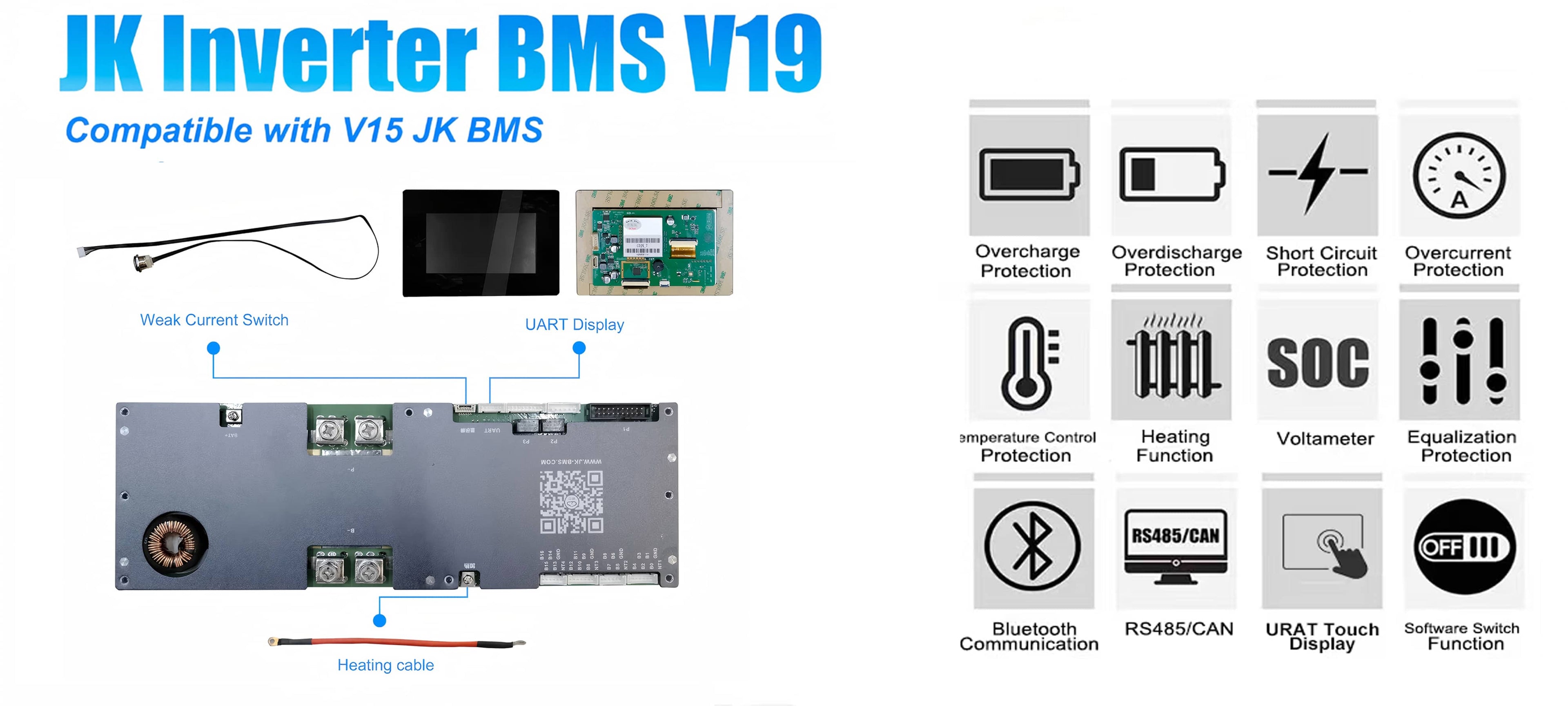

Upgraded JK 8-16S V19 Inverter BMS
JK's latest JK V19 version inverter BMS once again leads the revolution in the field of solar cell DIY. It adopts a new design with higher current measurement accuracy. On the basis of retaining all the functions of the previous generation V15 version, it also adds
1. UART serial communication function for integrated communication of multiple batteries, and centrally manage multiple batteries through the 4.3-inch TTL display on the host.
2. Support one-click import of BMS parameter setting information through the RS485 interface, so you don't have to worry about how to set the parameters correctly.
Now, you can easily manage multiple batteries on one battery, and building a home energy storage system is simpler and faster.
What can JK inverter BMS do?
JK Inverter BMS (Battery Management System) is a key component for managing and protecting battery systems, especially in applications such as inverters and solar storage. Whether you are a home solar DIY enthusiast or a manufacturer of energy storage batteries, it will be your ideal choice. Its main functions include:
Battery monitoring: Continuously track key parameters such as voltage, current, temperature and state of charge (SOC) of each battery or battery module to ensure optimal performance.
Battery balancing: Its unique 2A balancing function integrated inside the BMS ensures that all batteries are charged and discharged evenly, preventing individual batteries from being overcharged or deeply discharged, thereby extending battery life.
Intelligent protection: Intelligently control power on and off to protect batteries from potential hazards such as overvoltage, undervoltage, overcurrent, short circuit and overheating, thereby improving safety.
Multiple communications: Provide real-time data and alarms to users or connected systems through interfaces such as RS485, CAN bus or Bluetooth for remote monitoring and control.
Intelligent optimization: Maximize battery efficiency and service life by managing charge/discharge cycles and keeping batteries within the ideal operating range.
Overall, the JK inverter BMS ensures that the battery system operates reliably, safely, and efficiently in a variety of applications.
Through the JK BMS mobile Bluetooth application, battery data can be visualized and BMS parameters can be adjusted intelligently. (Note: The default pairing password between the JK BMS application and the BMS is 1234, and the default authorization password is 123456. Please do not confuse the two.)
