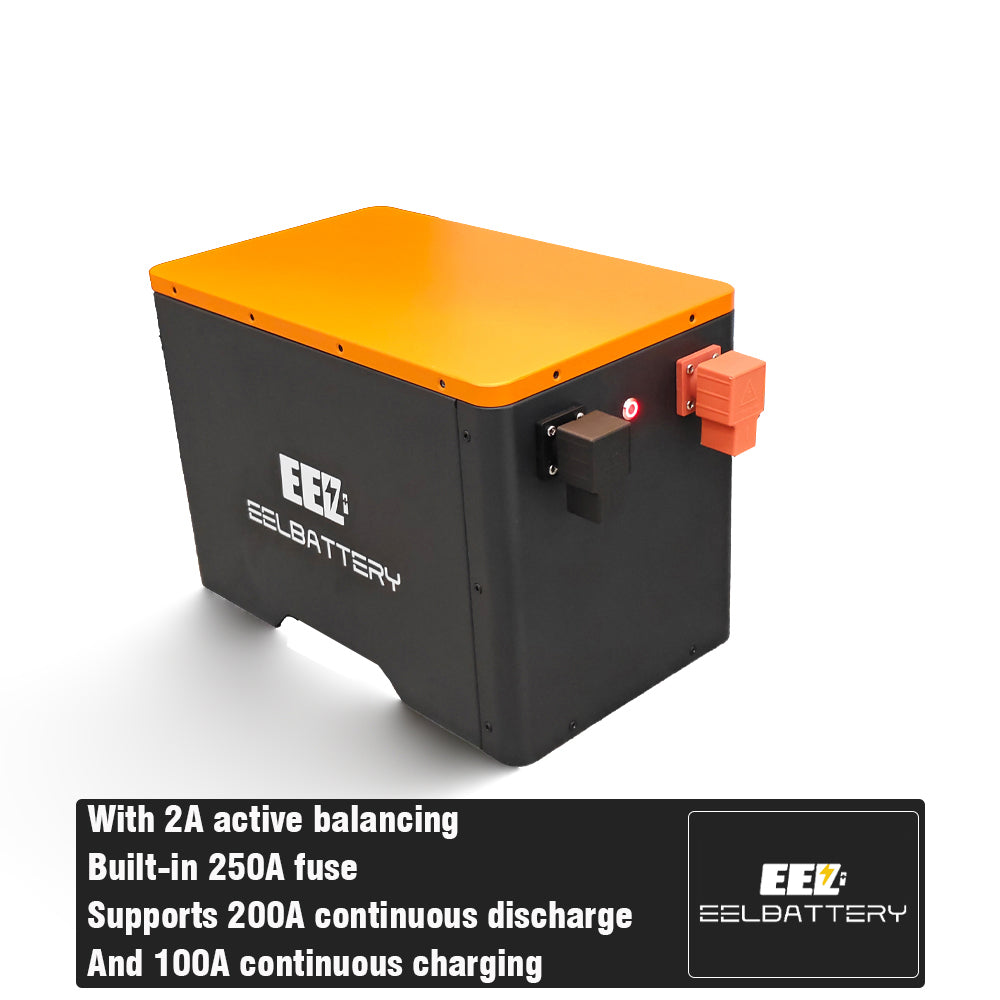

EEL 12V battery box with JK 200A BMS
Portable 12V battery box for building your small power bank,free shipping in Europe.

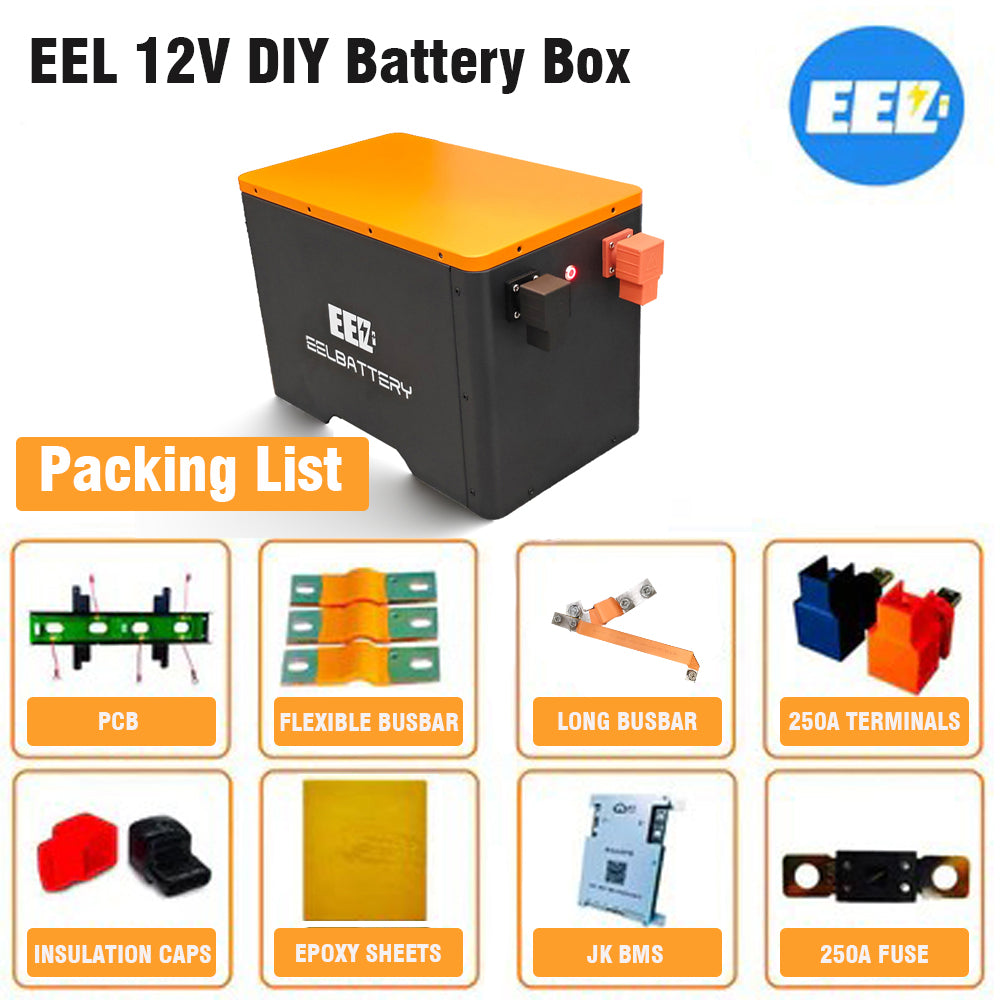

Packing list of the EEL JK 12V battery case.

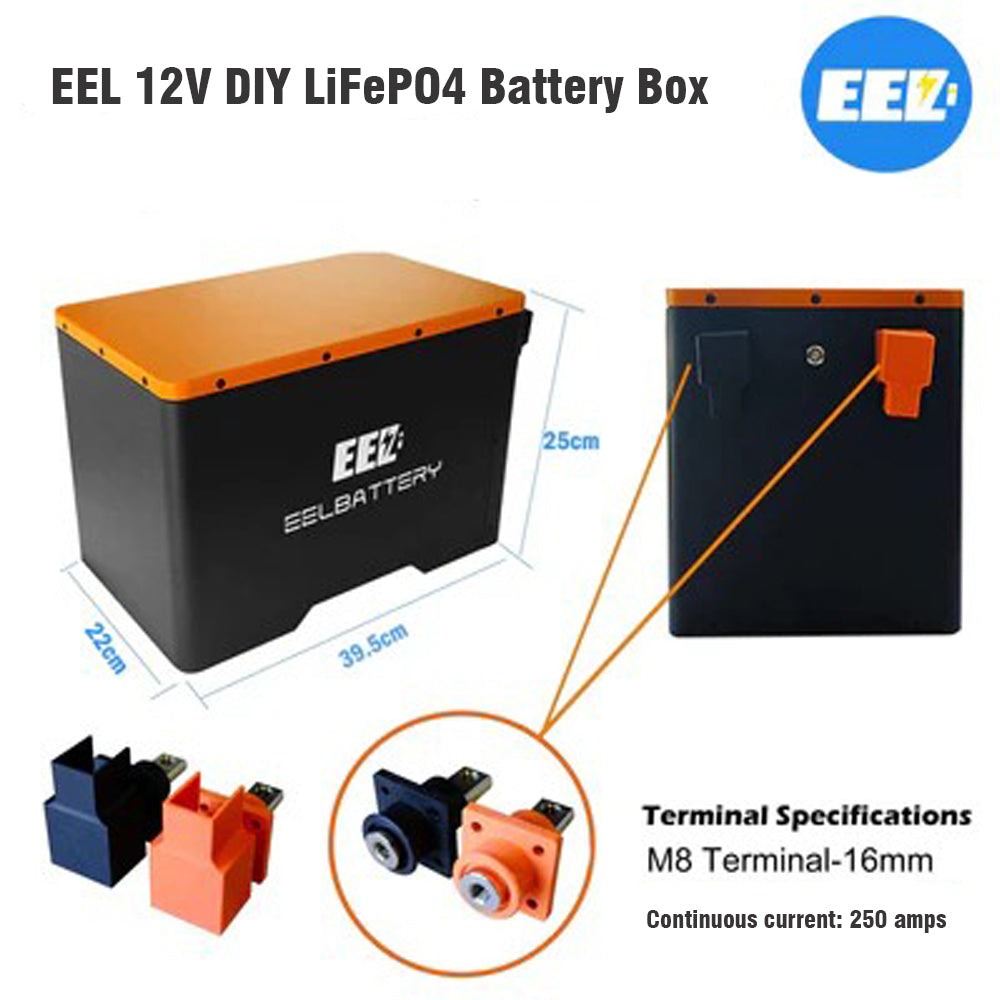

The dimensions of the EEL 12V JK battery box is:22*39.5*25 cm(W*L*H).

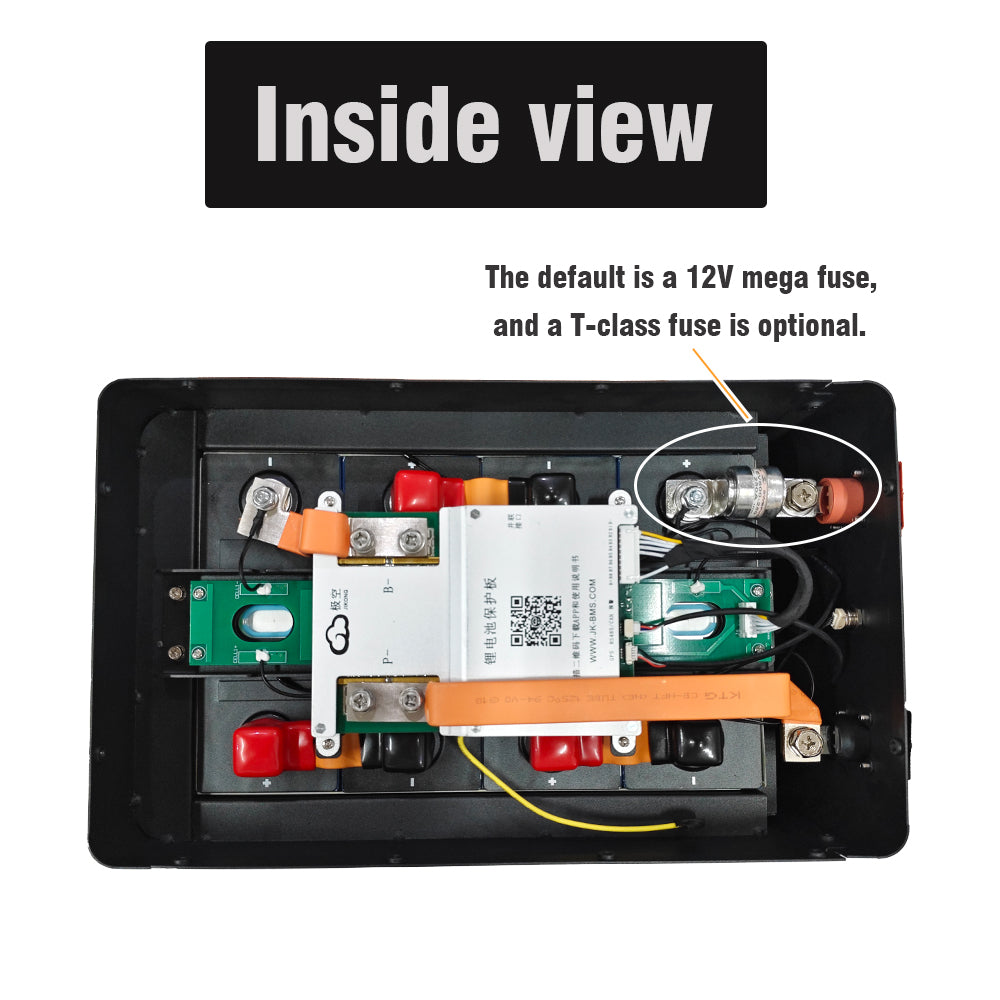

Inside view of the EEL 12V JK diy battery box.
The EEL 12V DIY battery box has practical functions such as overcharge and over-discharge protection, over-temperature protection, 2A active balancing, and Bluetooth communication.
EEL 12V DIY battery box can be widely used in small household energy storage, outdoor power supply, small boat power supply and other usage scenarios.
EEL 12V portable high-capacity battery is a good helper for your outdoor travel.
Assemble the EEL 12V JK battery box step by step to make it a power bank that can store 4kwh of electricity.

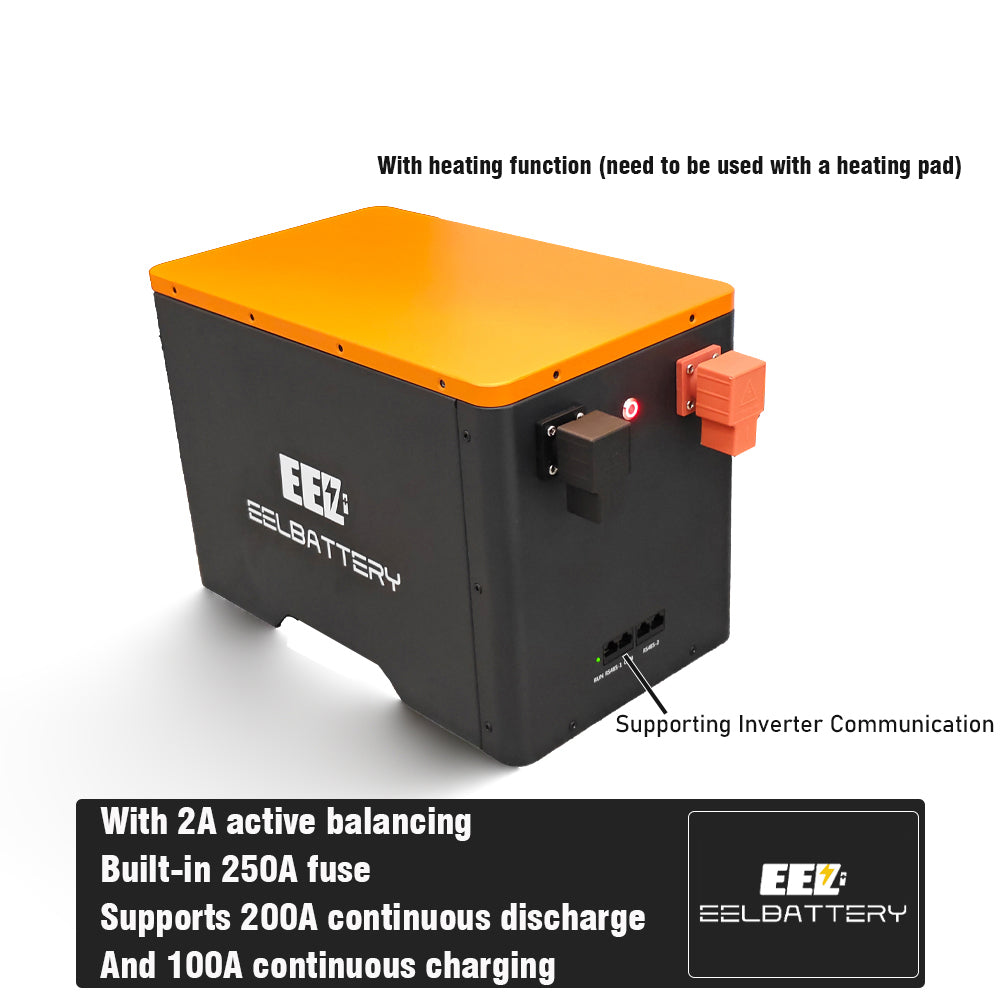

EEL 12V battery box with heating function,supporting inverter communication.
  • EEL 12V battery box with JK 200A BMS
  • Portable 12V battery box for building your small power bank,free shipping in Europe.
  • Packing list of the EEL JK 12V battery case.
  • The dimensions of the EEL 12V JK battery box is:22*39.5*25 cm(W*L*H).
  • Inside view of the EEL 12V JK diy battery box.
  • The EEL 12V DIY battery box has practical functions such as overcharge and over-discharge protection, over-temperature protection, 2A active balancing, and Bluetooth communication.
  • EEL 12V DIY battery box can be widely used in small household energy storage, outdoor power supply, small boat power supply and other usage scenarios.
  • EEL 12V portable high-capacity battery is a good helper for your outdoor travel.
  • Assemble the EEL 12V JK battery box step by step to make it a power bank that can store 4kwh of electricity.
  • EEL 12V battery box with heating function,supporting inverter communication.
  • EEL 12V battery box with JK 200A BMS
  • Portable 12V battery box for building your small power bank,free shipping in Europe.
  • Packing list of the EEL JK 12V battery case.
  • The dimensions of the EEL 12V JK battery box is:22*39.5*25 cm(W*L*H).
  • Inside view of the EEL 12V JK diy battery box.
  • The EEL 12V DIY battery box has practical functions such as overcharge and over-discharge protection, over-temperature protection, 2A active balancing, and Bluetooth communication.
  • EEL 12V DIY battery box can be widely used in small household energy storage, outdoor power supply, small boat power supply and other usage scenarios.
  • EEL 12V portable high-capacity battery is a good helper for your outdoor travel.
  • Assemble the EEL 12V JK battery box step by step to make it a power bank that can store 4kwh of electricity.
  • EEL 12V battery box with heating function,supporting inverter communication.
EEL 12V LiFePO4 battery case with JK 200A bluetooth BMS for Golf Cart,RV,EV,boat,EU Stock pre-sale

EEL 12V LiFePO4 battery case with JK 200A bluetooth BMS for Golf Cart,RV,EV,boat,EU Stock pre-sale

$269.99

This EELBATTERY 12V DIY metal battery box impresses with its unique design and easy assembly. Its powerful JK BMS system and unique 2A balancing function effectively manage your battery and extend its lifespan. Battery parameters can be configured with a single tap on your phone, and the latest version also adds the ability to communicate with an inverter.
BMS Type
Capcity
Active Balance Current

Reliable shipping

Flexible returns

NOTICE:

*THE PACKAGE DOES NOT INCLUDE LIFEPO4 CELLS

*Please make sure that your battery cells are consistent before building the pack.

Specifications:

Standard Voltage: 12V
Maximum Discharge Current: 200A
Maximum Continuous Charge Current: 100A
Maximum Continuous Discharge Current: 150A
Communication: CANBUS and RS485
(Communication-capable models only)
Material: Steel
Weight: 9kg
Dimensions: 220*395*250mm
Warranty: 5 years
OEM/ODM: Supported

Package Include:

  • 2 *  terminals(Positive/negative)
  • 4* Epoxy boards
  • 1 JK BMS switch line/1 3.2 inch diaplay
  • 5 * Insulation cap
  • 1 * 12V PCB Boards
  • 1 * 250A Fuse
  • 3 * Flexible Busbar
  • Other Accessories
  • The bluetooth BMS is B2A8S20P
  • 2*Special Customized Bus bar

Free Shipping from the EU warehouse with 7-10 days delivery.

Attention:The battery box is not suitable for the Double-hole studs cells!

Get the JK BMS app:

Search for "JK BMS" in the Google Play Store or iOS App Store to download and install it.

Frequently asked questions
What kind of BMS comes with the battery box?

We use the JK BXA8S20PXX series BMS, which has a built-in 2A active equalizer. There are three models in total: a conventional model, a model with heating function, and a model with heating and inverter communication function.
I already have my own JK BMS, can you provide me with an empty box?

Of course, tell us the model you need in the order notes and we can take out the BMS for you (Note: only for boxes shipped from China)
What types of prismatic lithium iron phosphate batteries is this box suitable for?

It is suitable for standard square battery cells such as 280/302/304/314Ah. Please contact us if you would like to know whether other battery cells are compatible.
I'm a novice and not good at assembling it myself. Can I buy batteries assembled with these boxes?

Of course, you can find it in our lithium battery pack product category. The BMS model and box model are both optional.
Can I change the logo on the housing to my own?

Of course, please contact us to provide your pattern file for customization.

DIY with us

This 12V battery box has a simple, reliable design and is easy to install. It's received great reviews on Andy's Off-Grid Garage and Dave's channel. You can follow along with their instructional videos or download the assembly manual by clicking the button below.

 12V Battery Box Assembly Manual

To learn how to correctly configure battery parameters, please download: JK BMS Application Operation Guide
EEL 12V portable high-capacity battery is a good helper for your outdoor travel.

Why choose our 12V DIY battery kit series?

1. Build your own and save money compared to buying pre-made products.
2. The battery is replaceable, giving you the freedom to choose.
3. The all-metal casing is more durable than plastic.
4. The internal structure is compact and shake-free.
5. The color display allows for a clear view of real-time battery parameters.
6. A built-in 250A fuse provides effective protection.
7. Multiple versions are available to suit your needs.

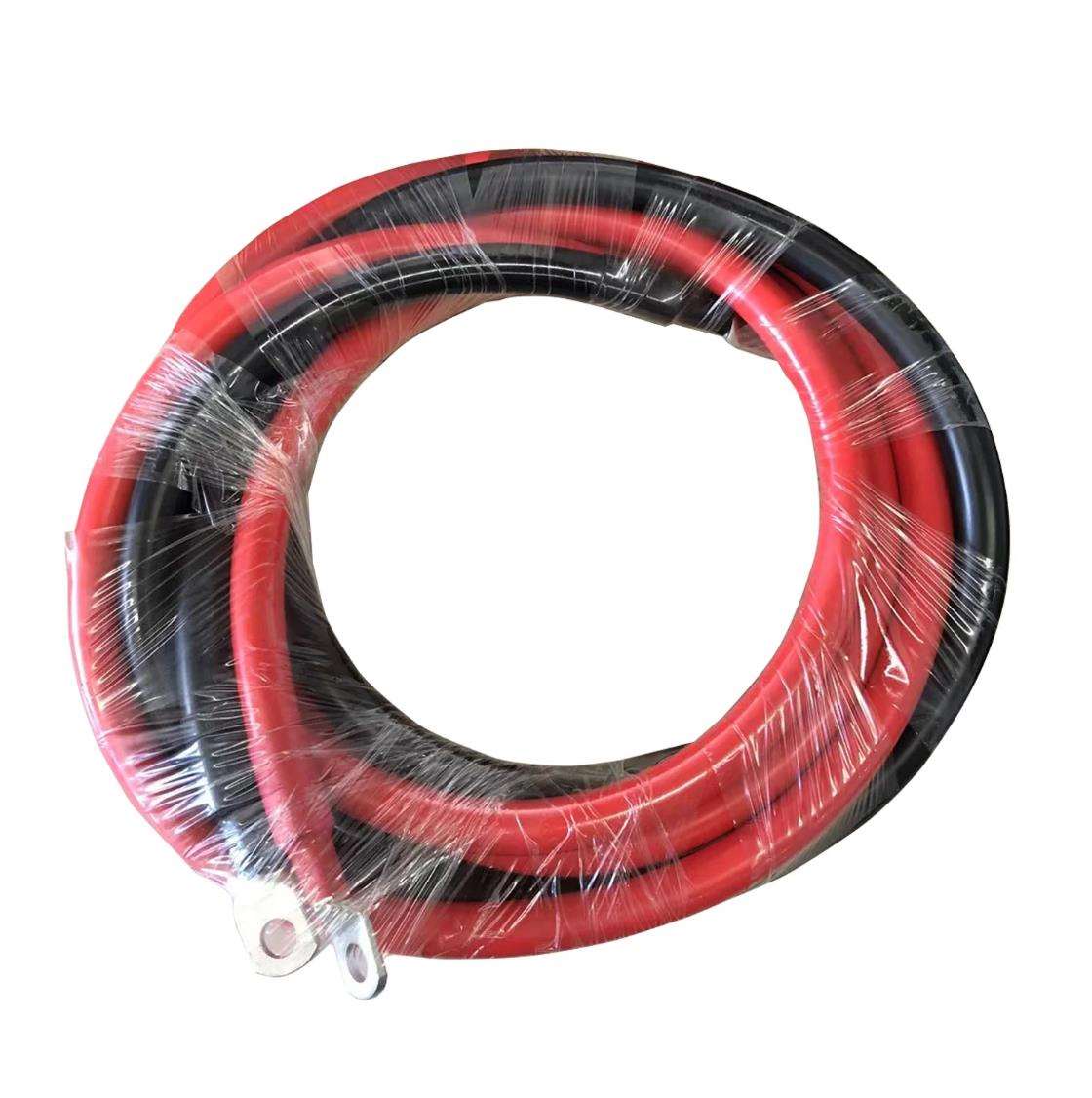

48V EEL Battery Box Inverter Connection 35mm² Silicone power Cable

EEL high temperature resistant power cables

Choosing the right external cable for your battery is crucial. Non-compliant cables can overheat and even cause fires. Our high-power cables are constructed with heat-resistant silicone on the outside and thousands of tinned copper wires on the inside, easily carrying high currents and ensuring your electrical safety.

 Take a look

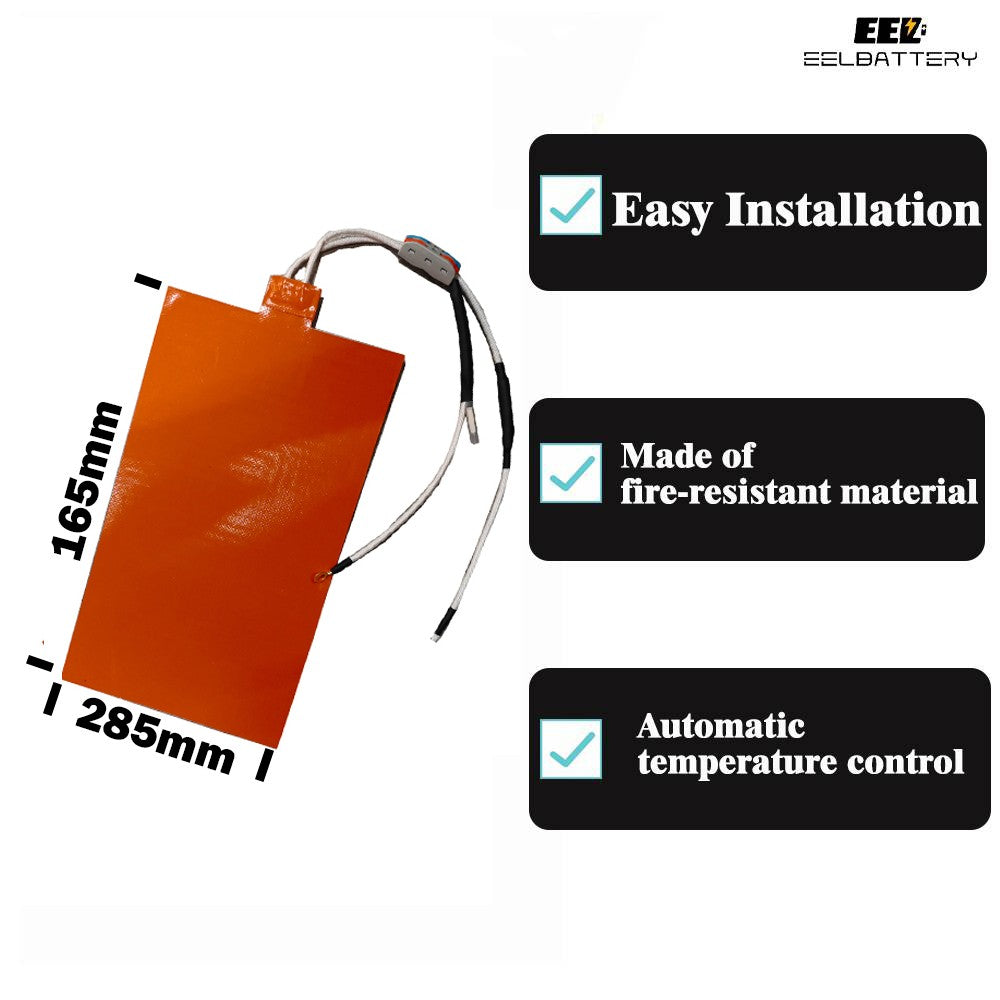

3 advantages of EEL 12V JK BMS heating pad.

EEL 12V JK BMS Heating Mat

Battery performance will be greatly reduced in low temperatures. Using our JK heating pad for 12V battery box, your battery can be automatically heated at low temperatures. When it reaches the specified temperature, it will automatically stop heating until it returns to normal working state.
