EEL 48V 16S V2 Vertical DIY battery Case Built In Seplos V2 Bluetooth BMS ,With Adjustable Wheels,For Home Energy Storage System,China Stock
EEL 48V V2 vertical battery box with 250A T-type fuse and 250A DC circuit breaker and 200A Bluetooth inverter EN BMS is suitable for home energy storage system and can be easily assembled by novices.
$579.99
File Download: V2 Vertical Battery Box Assembly Tutorial
Reliable shipping
Flexible returns
Specification(Battery Box with wheels)
Suitable battery cell type: 280/302/306/314Ah square battery cell
Material: steel
Communication method: CANBUS/RS485
Battery management system (BMS): 48V 16S 200A
Nominal voltage: 51.2V
Current: 200A
Warranty: 5 years
OEM/ODM: optional
Weight: 29kg
Dimensions: 450*260*780 mm (upright state)
Number of parallel connections: up to 14 batteries

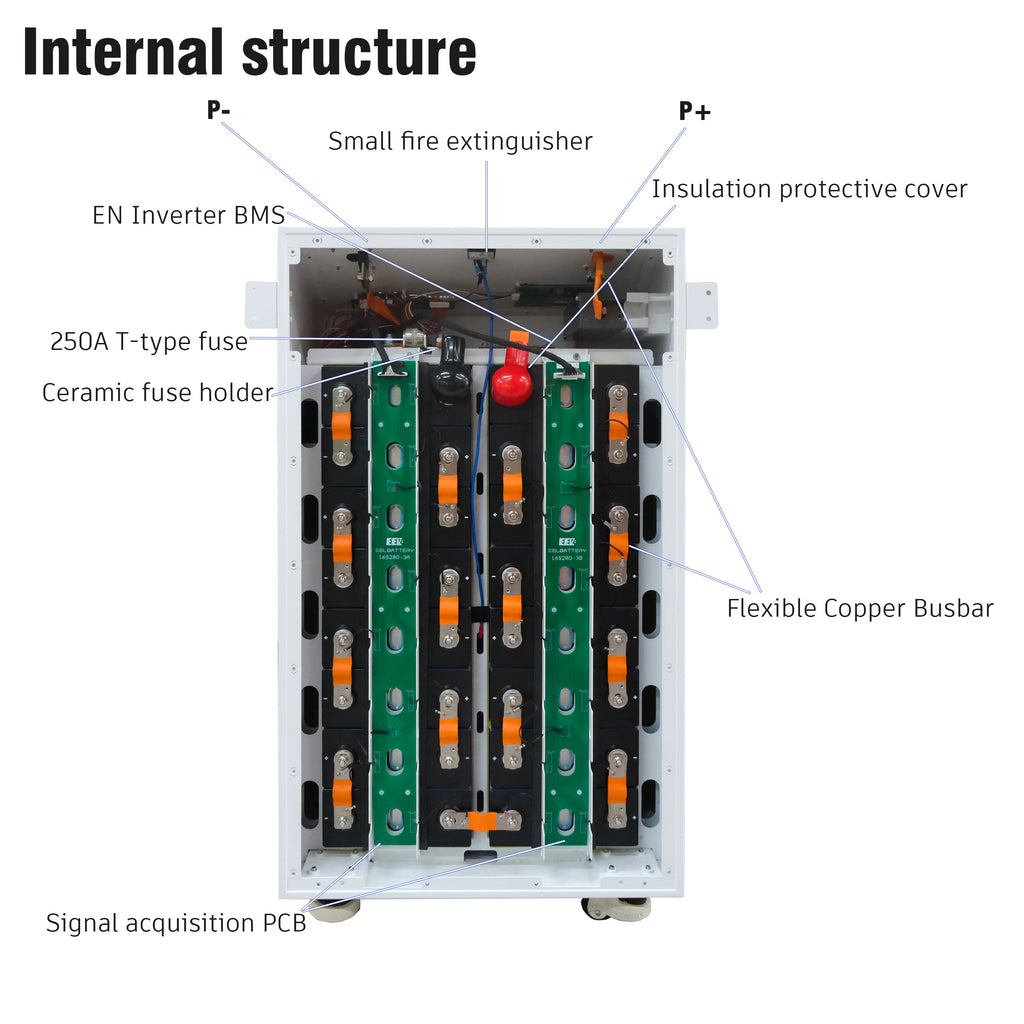

Parts list (excluding battery cells):
1 * Battery box (including main shell, top plate, pressure plate, PCB rail, back plate)
1* 250A T-type fuse (including fuse holder)
1* 250A DC circuit breaker (including screws)
18* Epoxy board (located between battery cells and battery box)
2* PCB (for BMS signal acquisition) + 2* matching EVA tape
1* Small fire extinguisher
1* Weak current switch
1* 48V 16S BMS battery management system
+ 2* BMS line + communication board (including wire)
1* LCD display + 1* LCD screen line + 4* Button cover
2* 400A output terminals (P+ terminal and P- terminal)
6* Long flexible busbar (for BMS connection)
2* Hard copper busbar (for BMS connection)
2* Insulation protection cover (positive and negative poles)
4* Adjustable Fumar wheels
15* Flexible busbars (for connecting battery cells)
20* EVA tape (for connecting battery cells)
1* Screw accessory box
2* Battery box fixings (including screws)
Software Downloads:
Have other questions? Feel free to contact us by clicking the form below.
You may also like
Frequently asked questions
Q: What BMS is used in this 48V vertical battery box?
A: We use 200A EN inverter BMS, which supports Bluetooth communication and provides CAN communication and RS485 communication with the inverter.
Q: Can I buy only the battery box without the BMS?
A: Yes, the price of BMS is $200/piece, and we can take it out for you if you want to order it.
Q: If I want to build a 48V home energy storage battery, what should I choose?
A: It depends on the capacity you want, and our battery box can be connected in parallel up to 15 units.
Q: Can I buy a complete 48V vertical battery?
A: Of course. Because our battery kit does not include batteries, if you need a complete battery system, please leave us a message to let us know your needs.
Q: How to set up the battery system?
A: The battery system can be connected to a computer, and you can set up and manage the entire system on the computer.
Q: If the cells are placed like this, will the weight of the bottom cell be equal to the weight of the top cell?
A: Don't worry, the recommended cell compression pressure is 300kgf and the cell weight is less than 300kgf.
Q: I have my own logo, can I print it on the battery pack shell?
A: Yes, we accept customized logos, but there is a minimum order quantity requirement (>10 sets). If you need samples, please contact us.

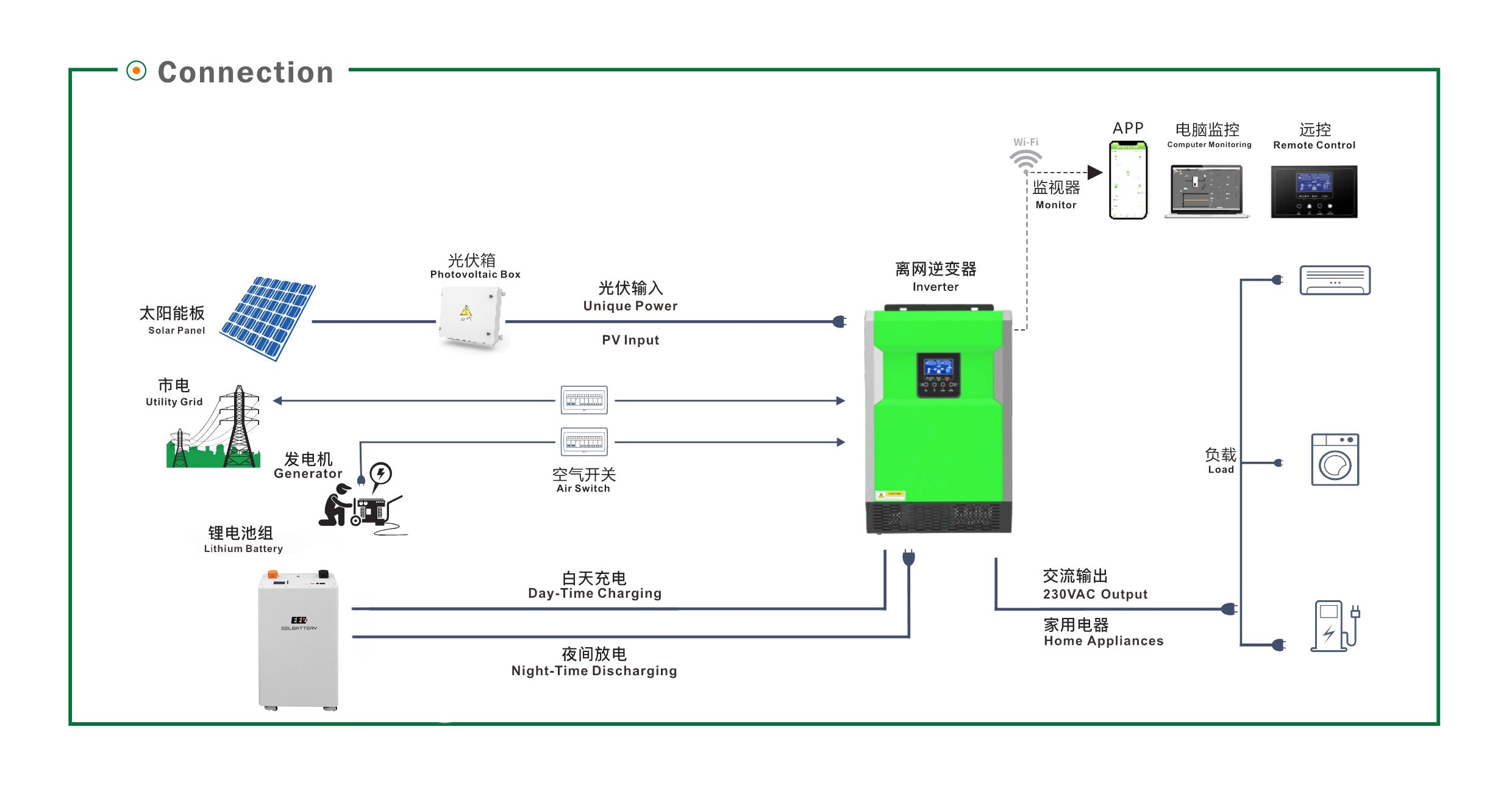

Build your home energy storage system
Learn about EN Inverter BMS
EN BMS is a mature battery management system, also known as Seplos BMS. In addition to the basic protection functions common to similar protection boards, it also has a unique positive control logic that triggers the battery protection mechanism faster than other BMS. It also has more than 20 mainstream inverter communication protocols built in, which can perfectly adapt to most inverters on the market.
