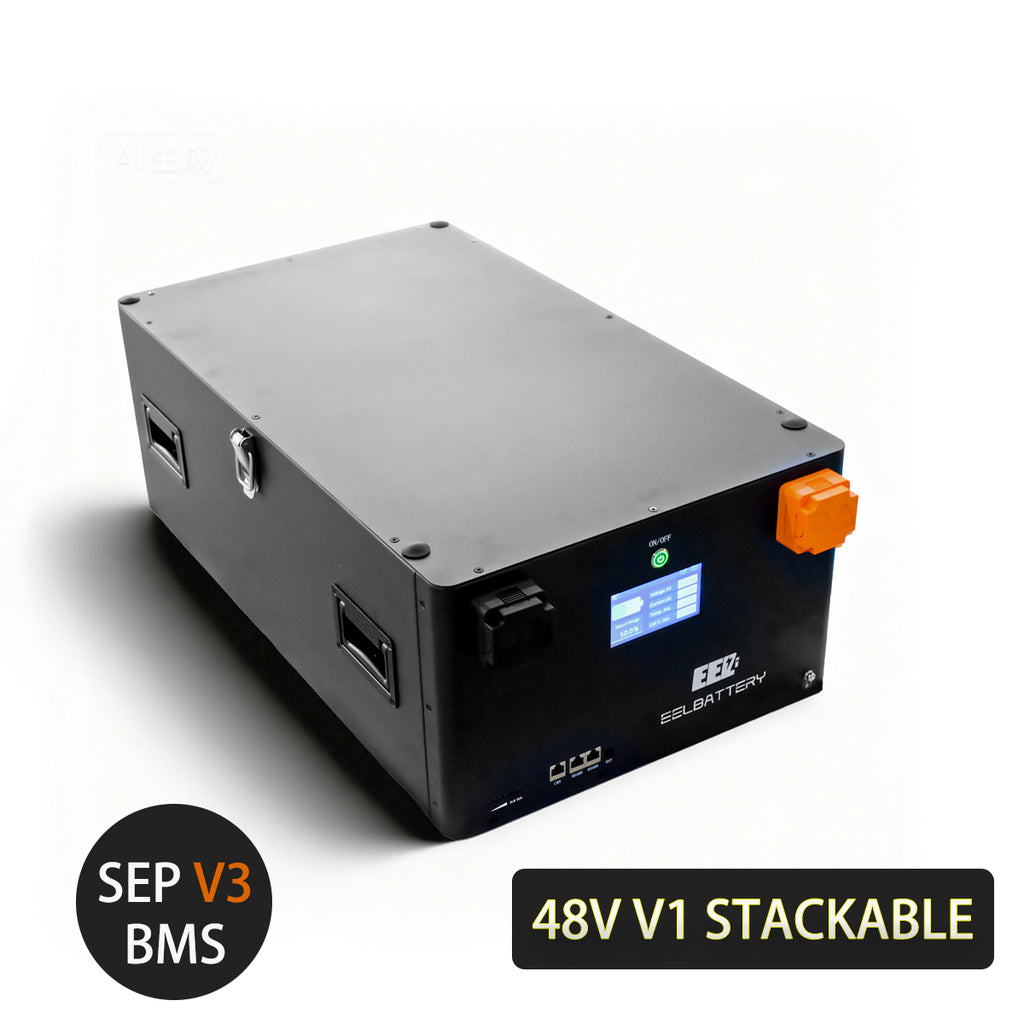

EEL 48V V1 Horizontal battery box with seplos v3.0 bms,ideal for solar battery diy.
  • EEL 48V V1 Horizontal battery box with seplos v3.0 bms,ideal for solar battery diy.

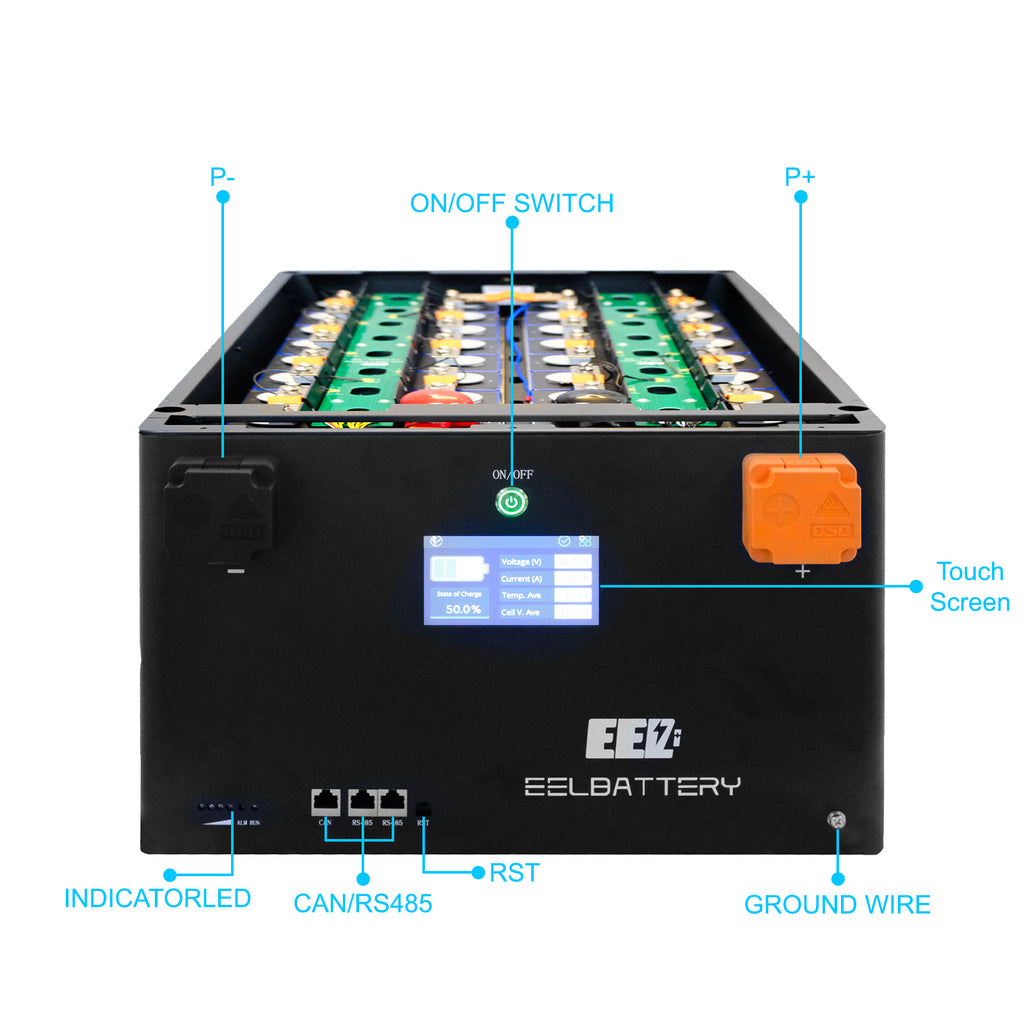

  • EEL 48V Seplos BMS V1 Horizontal Battery Box Front Panel Introduction

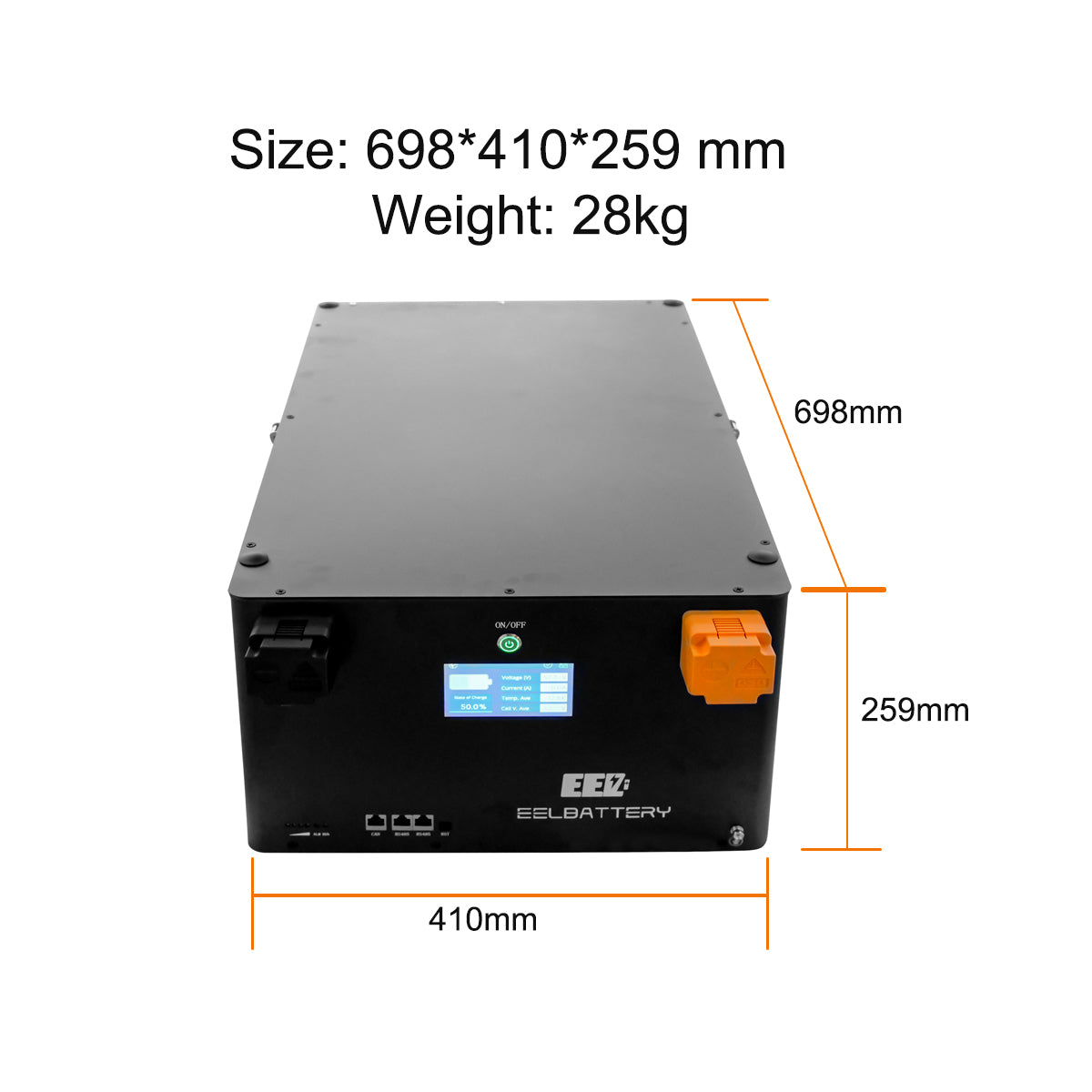

  • Dimensions of the EEL V1 48V horizontal box

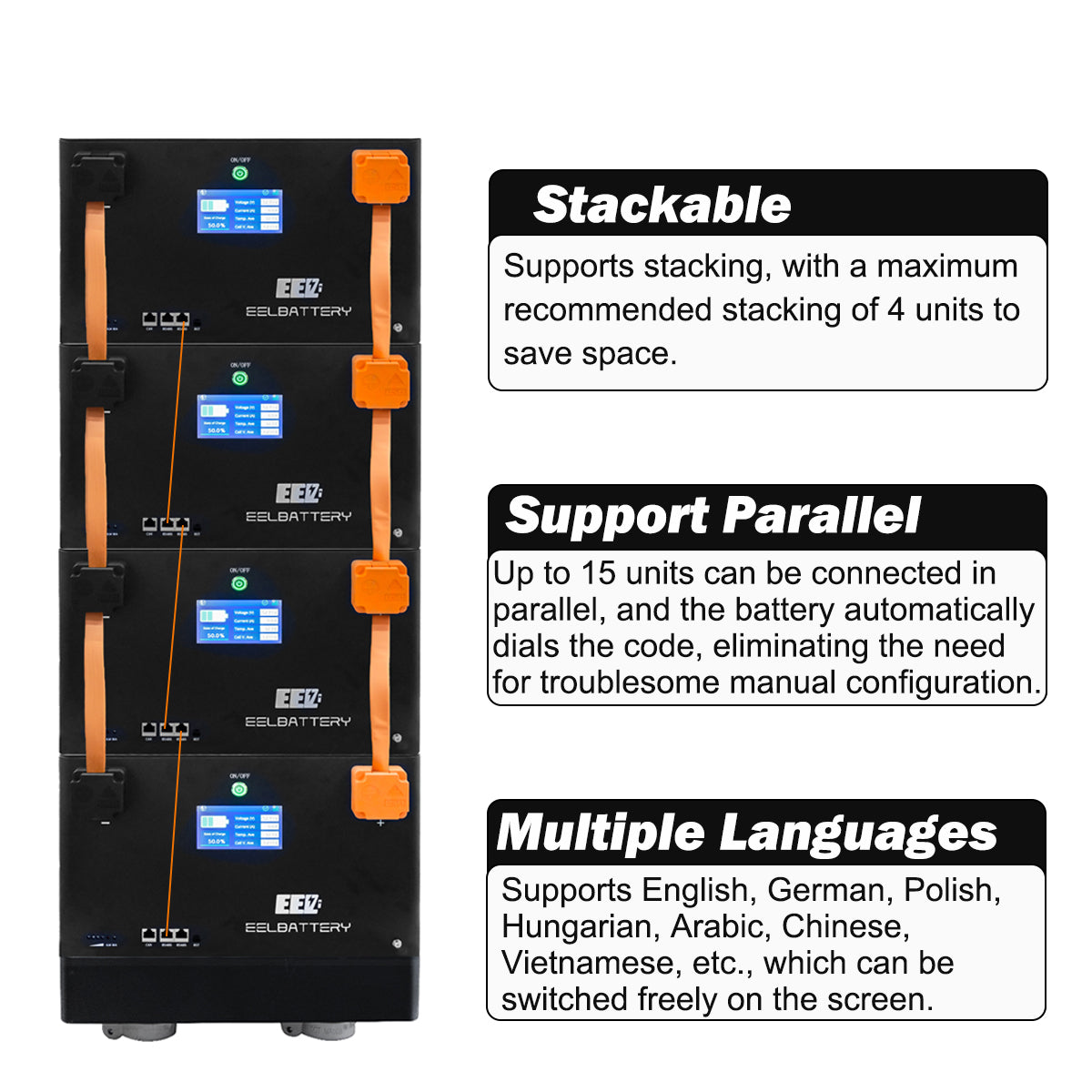

  • Features of the EEL 48V v1 DIY battery box
  • Advantages of the v1 box
  • EEL 48V V1 Horizontal battery box with seplos v3.0 bms,ideal for solar battery diy.
  • EEL 48V Seplos BMS V1 Horizontal Battery Box Front Panel Introduction
  • Dimensions of the EEL V1 48V horizontal box
  • Features of the EEL 48V v1 DIY battery box
  • Advantages of the v1 box
EEL V1 Horizontal Metal Battery Case for 280Ah 314Ah 48v/16s LiFePO4 DIY battery | China Stock

EEL V1 Horizontal Metal Battery Case for 280Ah 314Ah 48v/16s LiFePO4 DIY battery | China Stock

$519.98
ColorBlack
Busbar Type(For cell connection)
BMS Model
EEL BATTERY's unique 4-hole copper flexible busbar can adapt to both battery cells with double-hole poles and battery cells with single M6 poles.
Shipping Information:
1. Ships by ocean freight from our warehouse in China. You can also contact us to upgrade to air freight or express delivery.
2. This product cannot be shipped to certain areas.

EEL BATTERY 48V SEP V1 DIY Horizontal Battery Enclosure (400A Terminal Version)
Product Details: - New 400A terminal design -
48V steel battery enclosure for lithium iron phosphate batteries
- Compatible with 16-cell battery configurations (nominal voltage: 52V)
- Easy to assemble: All necessary parts are included, requiring only a few tools. Perfect for beginners. - Includes SEP V3.0 200A BMS with CANBUS and RS485 communication
- Battery compatibility: 280Ah/302Ah/314Ah cells (208*174*72mm)
- Stackable design: Up to 4 battery packs can be stacked, expanding energy storage to 256kWh
- CE certified
- BMS specifications: 48V 16S 200A
- Case dimensions: 698*410*250mm
- Colors: Black/White

Power your home DIY vision—durable and compact.

Packaging Details:

Package dimensions: 80.2 x 51.2 x 34 cm (31.57 in x 20.16 in x 13.39 in)
Gross weight per unit: 28 kg (61.73 lb)

Shipping & Return

USA Stock: Fast Shipping from our California warehouse.

EU Stock: Fast Shipping from our Polish warehouse.

China Stock: Fast Shipping from our China warehouse.
Materials

Steel, high temperature resistant plastic
Warranty

3-Year Return/Replacement Warranty

Please note: This DIY kit does not include battery cells.

Cells must be purchased separately. For purchasing assistance or compatibility guidance, please contact us directly.

Features about this DIY box:

Smart BMS
- It can automatically manage the battery and provide safety protection.

Real-Time Monitoring
- Track battery status via Bluetooth connectivity and an integrated touchscreen LCD.

Integrated Solution
- Includes a PCB collection board for streamlined cell signal management, eliminating wiring clutter.

Easy Installation
- Pre-installed components simplify setup and minimize installation errors.

Multi-Model Compatibility
- Supports 280Ah–314Ah LiFePO4 prismatic cells.

Expandable Capacity
- Allows up to 16 units in parallel to flexibly meet diverse power requirements.

Ideal for DIY enthusiasts seeking a scalable, user-friendly energy storage system with professional-grade management.

Do It Yourself

We offer a range of high-quality accessories for 48V battery pack enclosures! Designed to enhance the functionality and durability of your battery pack, our selection of accessories is the perfect complement to your power storage needs. Contact us today to explore our full product line and take your power storage solution to the next level!
Customers rate us 4.7/5 based on 18 reviews.
Buy the V1 case and battery unit together and save $30.

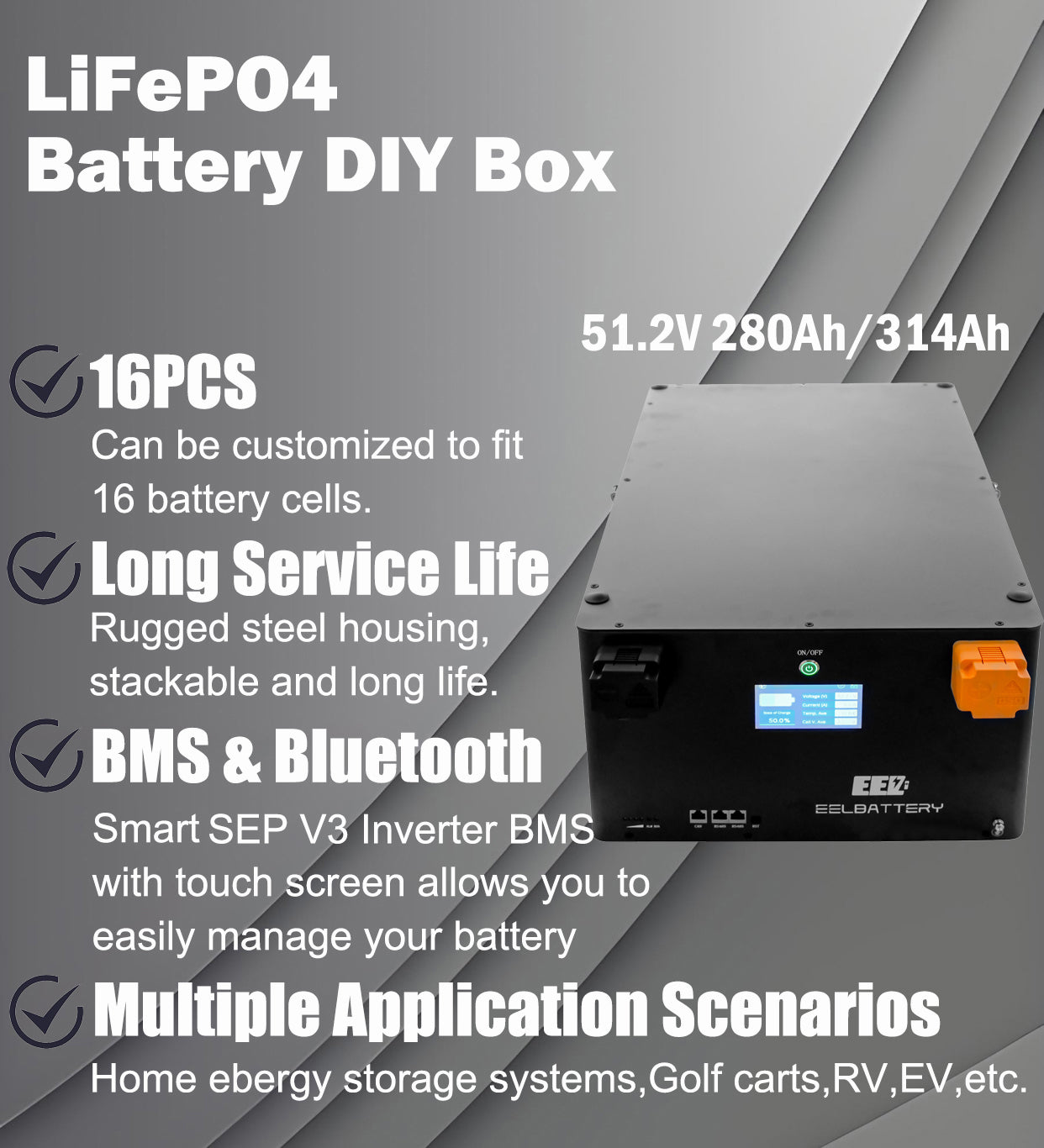

Features of V1 48V horizontal diy battery Box
