Details

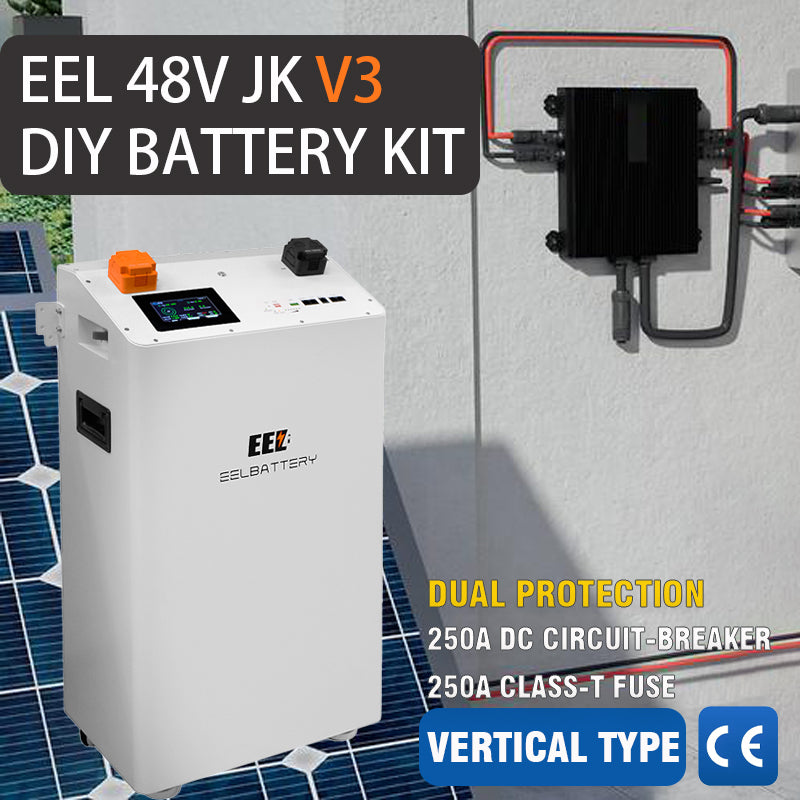

Brand: EEL BATTERY
Model:EEL-48V-JK-LV3
BMS Model: JK-PB2A16S15P / JK-PB2A16S20P
Applicable Battery Cells: 280/306/314AH (208mm × 174mm × 72mm)
Dimensions: 447*260*815mm
Weight: 29KG
Parallel Capacity: 16
File Download
Parts List (without battery cells)
1 × EEL JK V3 vertical battery box enclosure (includes main housing, front panel, two top PCB brackets, front baffle, and top cover)
20 × EVA foam blocks (for battery compartment placement)
2 × PCBs (for battery data acquisition) + 2 × matching EVA tapes
1 × JK 4.3-inch touchscreen (with adapter cable)
1 × low-voltage switch
1 × 48V 16S JK V19 BMS (JK-PB2A16S15P/JK-PB2A16S20P) + 2 × BMS signal harnesses
1 × small fire extinguisher
1 × 250A DC circuit breaker
1 × 250A Class T fuse
2 × 400A battery terminals (P+ and P-)
5 × custom-shaped copper busbars
15 × flexible copper busbars (for battery connection)
32 × M6 nuts or 64 × M6 nuts Screws
2 handles
2 insulating silicone caps
18 small epoxy sheets (for insulation between batteries)
6 large epoxy sheets (for battery compartment lining)
1 hardware kit
Packaging & Shipping
**Packaging Details**
- High-density custom-cut foam for enhanced battery protection
- 5-ply export-grade corrugated cartons, certified for hazardous materials
- Pre-shipment battery labeling on every unit
- Wooden crating available upon request for added transport security
**US/EU Warehouse (US Stock) – Fast Delivery**
- DDP (Delivered Duty Paid) service: No extra taxes; door-to-door delivery
- 3-7 day delivery via freight truck, DPD, FedEx, or UPS after dispatch
**China DDP Sea Shipping – Cost-Effective Option**
- DDP inclusive; no additional taxes; door-to-door delivery
- 45-60 day delivery via sea freight + local carriers (truck/DPD/FedEx/UPS)
**Shipping Restrictions**
- Unable to deliver to island addresses
**Tracking Information**
- Tracking updates provided after local carrier pickup
- Contact our support team anytime for assistance
