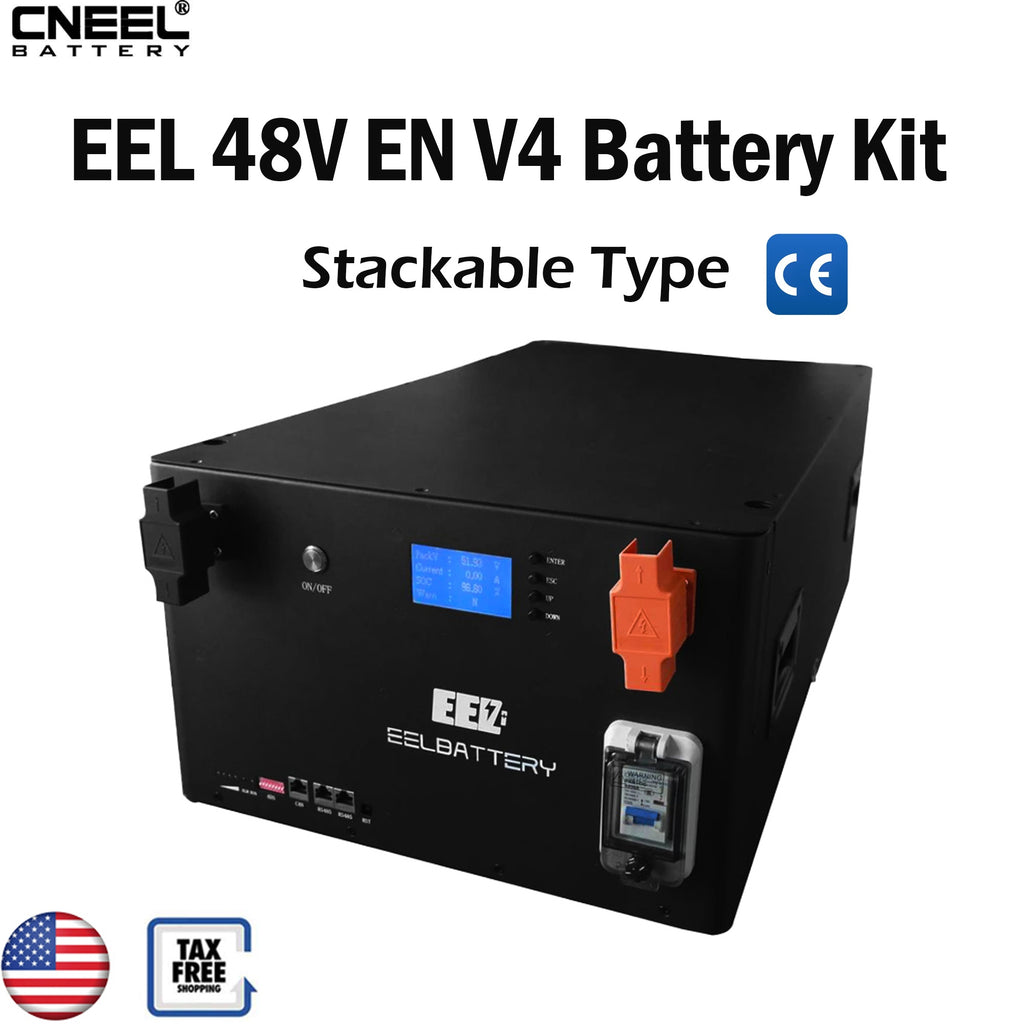

Special Offer-EEL 16S 48V V4 DIY Battery Box For Home Energy Storage System,USA Stock

Specification

Suitable Battery Type:280/304/306/314Ah LFP Cell
Material:  Steel
Communication: CANBUS and RS485(accept both)

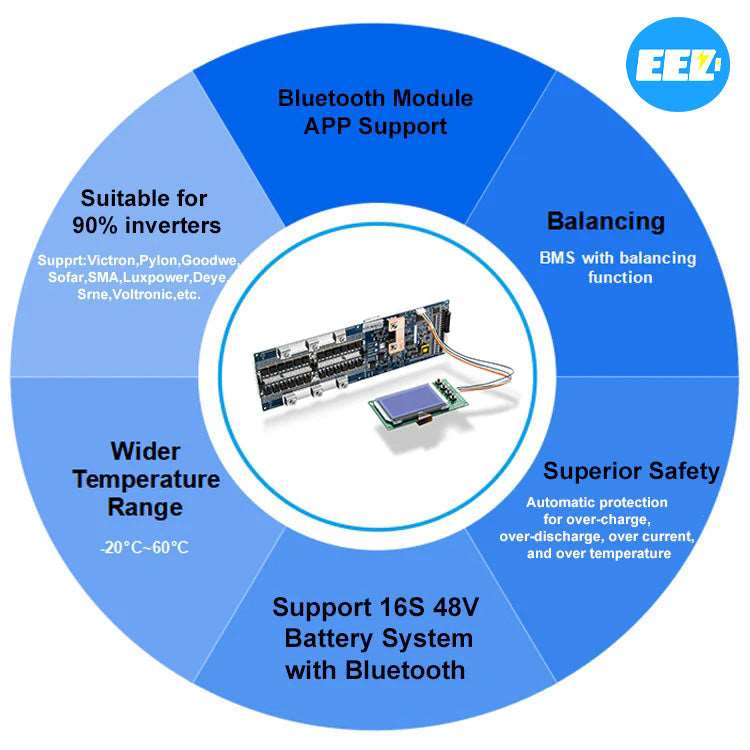

BMS: EN V2 200A Bluetooth BMS
Nominal Voltage:51.2V
Current:200A
Warranty:5 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*700*263mm

Parts List
1 * V4 battery box (main body, front panel, top cover, compression baffle, 2*PCB rails)
10 * Epoxy board (between battery pack and housing)
2 * PCB board (with copper wire) for BMS and battery pack connection + 2* matching EVA tape
1 * Weak current switch
1 * 48V 16S BMS + 2* BMS signal acquisition line
1 * 250A DC circuit breaker
2* Battery terminals (P+ terminal and P- terminal)
5 * Special-shaped flexible busbar (BMS connection)
15 * Flexible busbar (battery pack connection)
4 * Handles
2 * Upper and lower latches
16* EVA sponge block (between battery cells)
28* Acrylic strips
1* Screw accessory box

DownLoad the software:

https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Bluetooth App(Android):

https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing

Free Shipping From Our USA Warehouse ,5-10 Days For Delivery.
