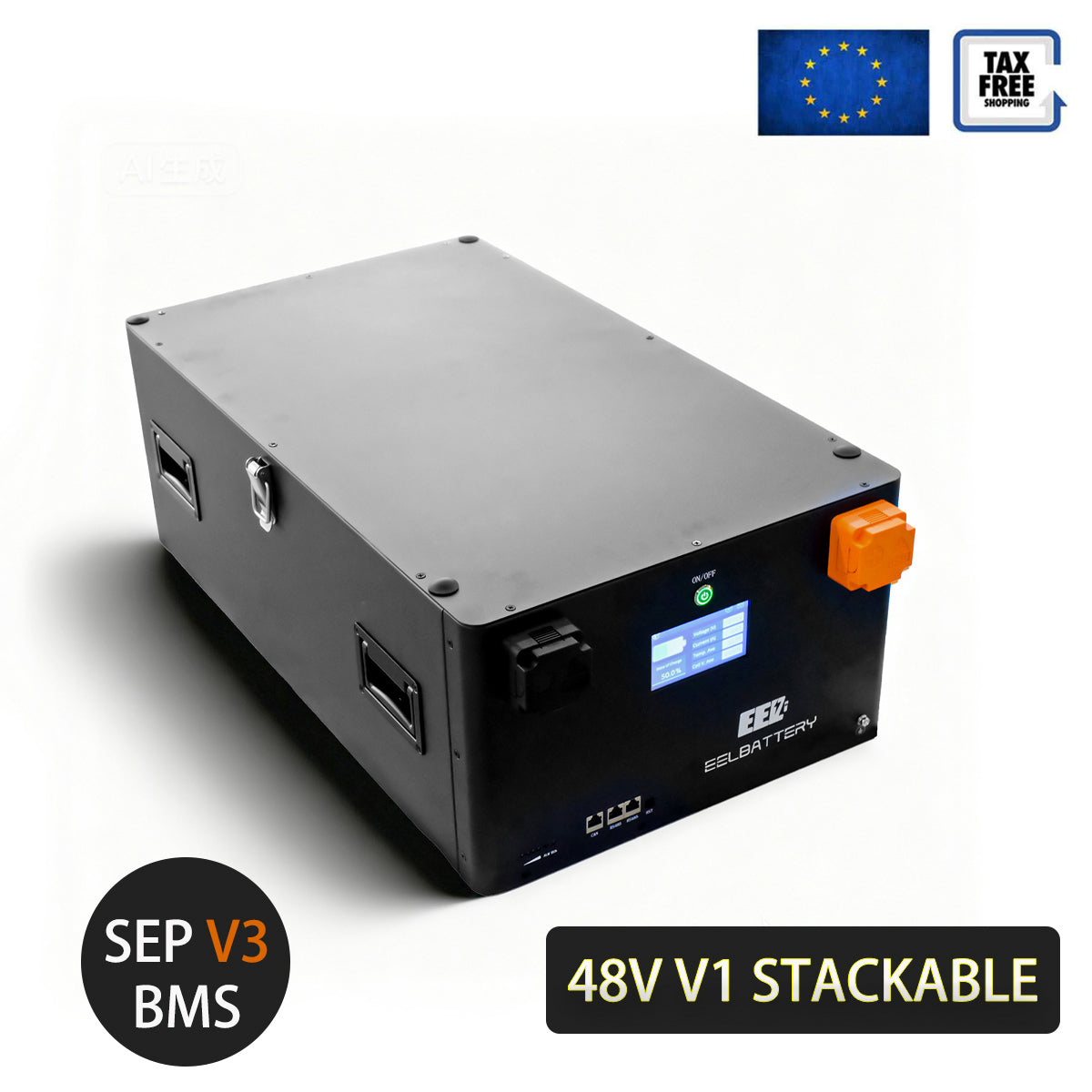

EEL 48V 200A Stackable DIY Battery kit with SEP 3.0 Buletooth BMS,For Solar System,EU Stock
EEL 48V 200A Stackable DIY Battery kit with SEP 3.0 Buletooth BMS,For Solar System,EU Stock
Não foi possível carregar a disponibilidade de recolha
Specification
Suitable battery type:
280/302/304/306/314/330Ah square lithium iron phosphate battery cells
Number of battery cells required for assembly: 16

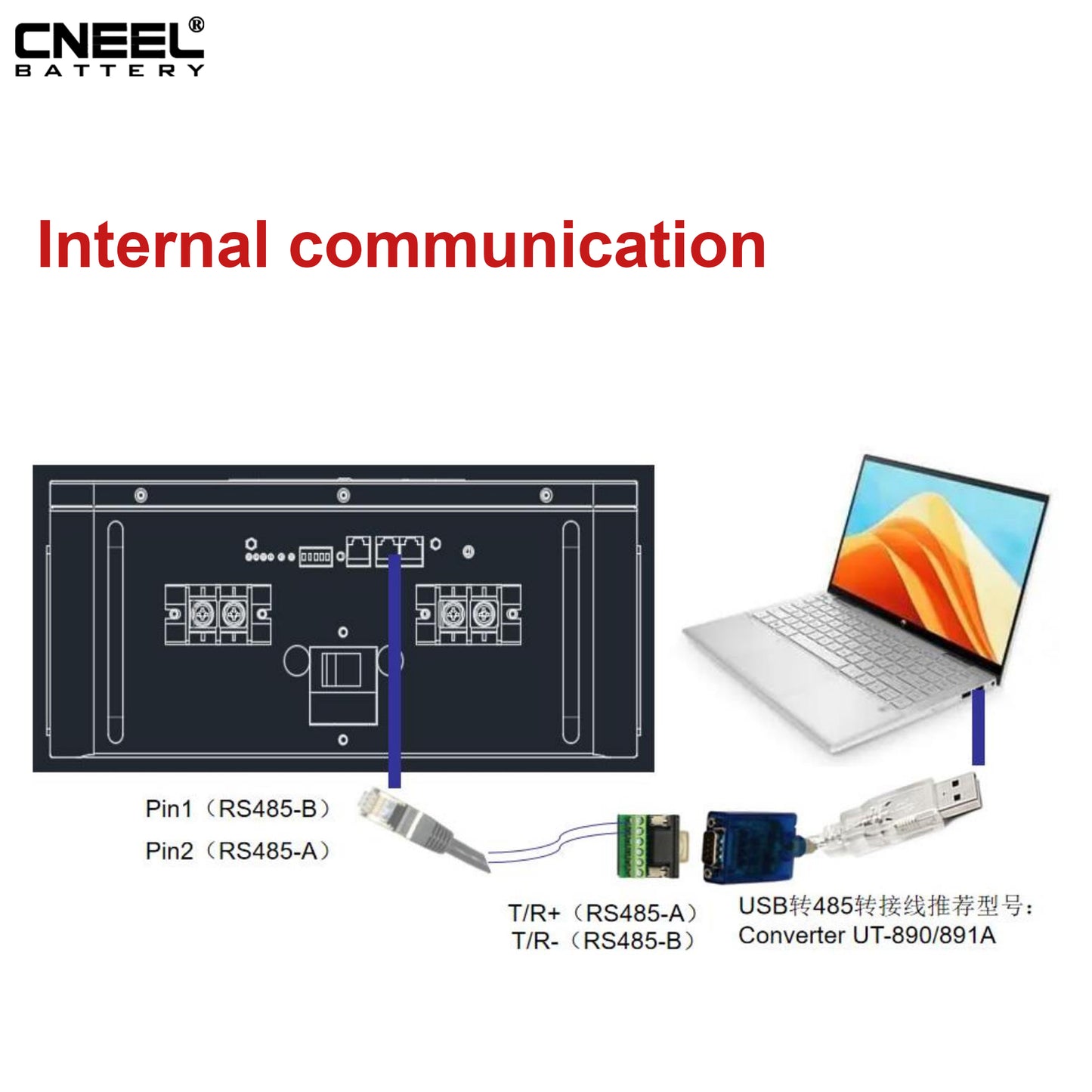

Communication method:
CANBUS and RS485 (compatible with both communication methods)
Battery management system (BMS):
48V 16S Seplos V3.0 battery management system
Nominal voltage: 51.2V
Rated continuous charge current: 200A
Rated continuous discharge current: 200A
Battery pack type: stackable
OEM/ODM: optional
Weight: 29kg
Material: iron
Warranty: 5 years
Dimensions: 415*730*263mm (L*W*H)
Maximum number of parallel connections: 15
Parts list (excluding battery cells)
1 * Battery box (including bottom shell, front bracket, 2* top bracket, front panel, top cover)
1 * 350A professional fuse (including fuse holder)
18 * Epoxy board (between battery cell and battery box)
2 * PCB board (including copper sheet) for BMS and battery cell connection + 2 * matching EVA tape
1 * Weak current switch
1 * 48V 16S 200A Seplos V3.0 BMS battery management system + 2 * BMS connection line
1 * LCD display + 1 * LCD display connection line + 4 * Button cover
2 * Battery terminals (P+ terminal and P- terminal)
4* Silicone wire, 1* Special-shaped busbar (BMS connection)
15 * Flexible busbar (battery cell connection)
4 * Embedded handles
2 * Upper and lower lock buckles
20 * EVA Tape (between cells)
Other small accessories
BMS app download:
Iphone users please search "octopus bms lite" in the iOS App Store to download.

Android users please scan the QR code below to download.

BMS Software Download:
Shipped from our Polish warehouse with 3-10 days for delivery.
