EEL 48V 16S V2 Vertical DIY battery Case Built In Seplos V2 Bluetooth BMS ,With Adjustable Wheels,For Home Energy Storage System,China Stock

Specification(Battery Box with wheels)

Suitable battery cell type: 280/302/306/314Ah square battery cell
Material: steel
Communication method: CANBUS/RS485
Battery management system (BMS): 48V 16S 200A
Nominal voltage: 51.2V
Current: 200A
Warranty: 5 years
OEM/ODM: optional
Weight: 29kg
Dimensions: 450*260*780 mm (upright state)
Number of parallel connections: up to 14 batteries

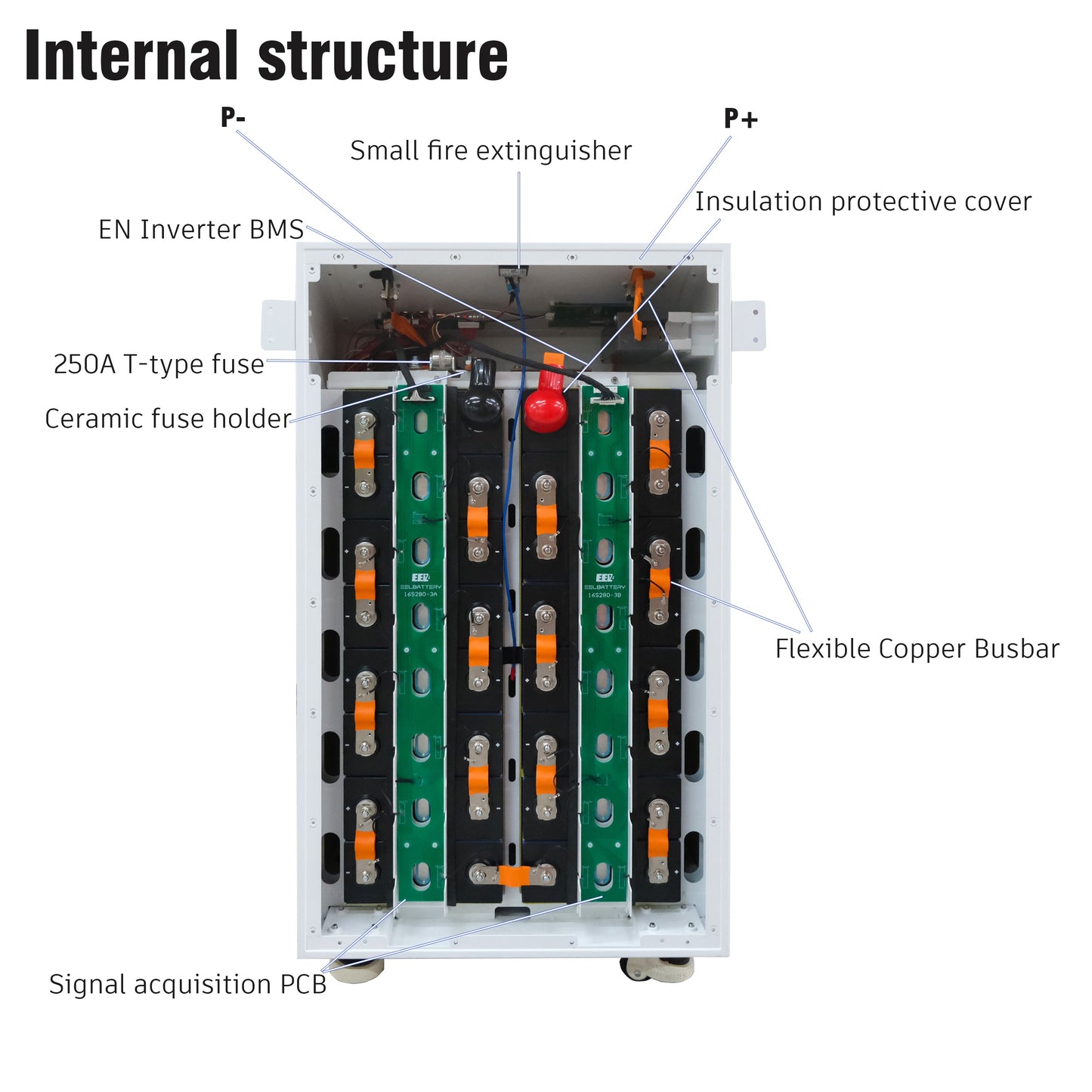

Parts list (excluding battery cells):

1 * Battery box (including main shell, top plate, pressure plate, PCB rail, back plate)

1* 250A T-type fuse (including fuse holder)

1* 250A DC circuit breaker (including screws)

18* Epoxy board (located between battery cells and battery box)

2* PCB (for BMS signal acquisition) + 2* matching EVA tape

1* Small fire extinguisher

1* Weak current switch

1* 48V 16S BMS battery management system

+ 2* BMS line + communication board (including wire)

1* LCD display + 1* LCD screen line + 4* Button cover

2* 400A output terminals (P+ terminal and P- terminal)

6* Long flexible busbar (for BMS connection)

2* Hard copper busbar (for BMS connection)

2* Insulation protection cover (positive and negative poles)

4* Adjustable Fumar wheels

15* Flexible busbars (for connecting battery cells)

20* EVA tape (for connecting battery cells)

1* Screw accessory box

2* Battery box fixings (including screws)
