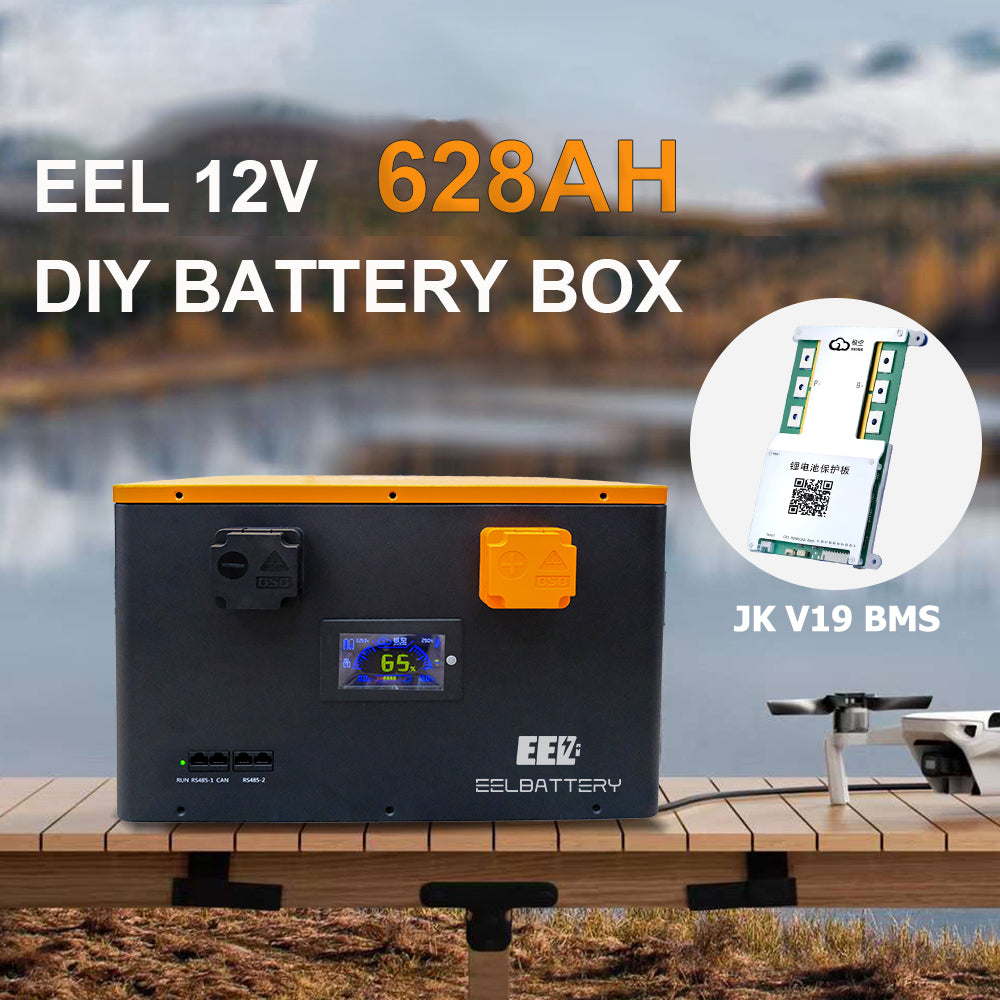

EEL 12V MB56 628Ah DIY Battery Box with Inverter Communication& Bluetooth, Featuring JK 300A BMS & Optional Heater
EEL 12V MB56 628Ah DIY Battery Box with Inverter Communication& Bluetooth, Featuring JK 300A BMS & Optional Heater
100 en stock
Impossible de charger la disponibilité du service de retrait
Specifications:
Package Includes:
- Free worldwide shipping
JK BMS Quick Setup
JK BMS Quick Setup
Learn how to set up your JK inverter BMS, including application and software operation instructions and troubleshooting.
⚠️ Important: Do not change your BMS password. This may lock you out of the device or even disable it. If you are locked out, please visit this guide to obtain your unlock code.
Get the code>>>
Descriptions
12V Metal Battery Case 628AH

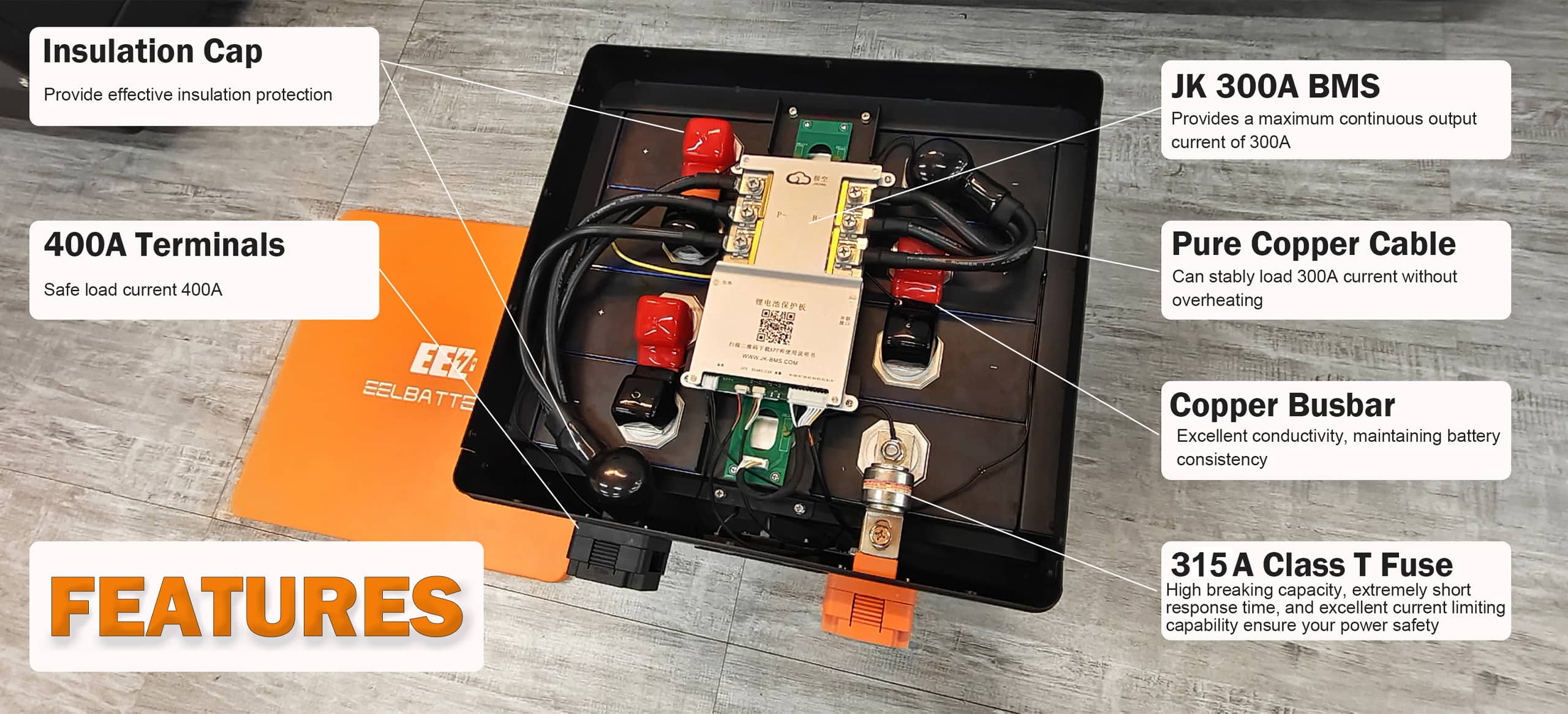

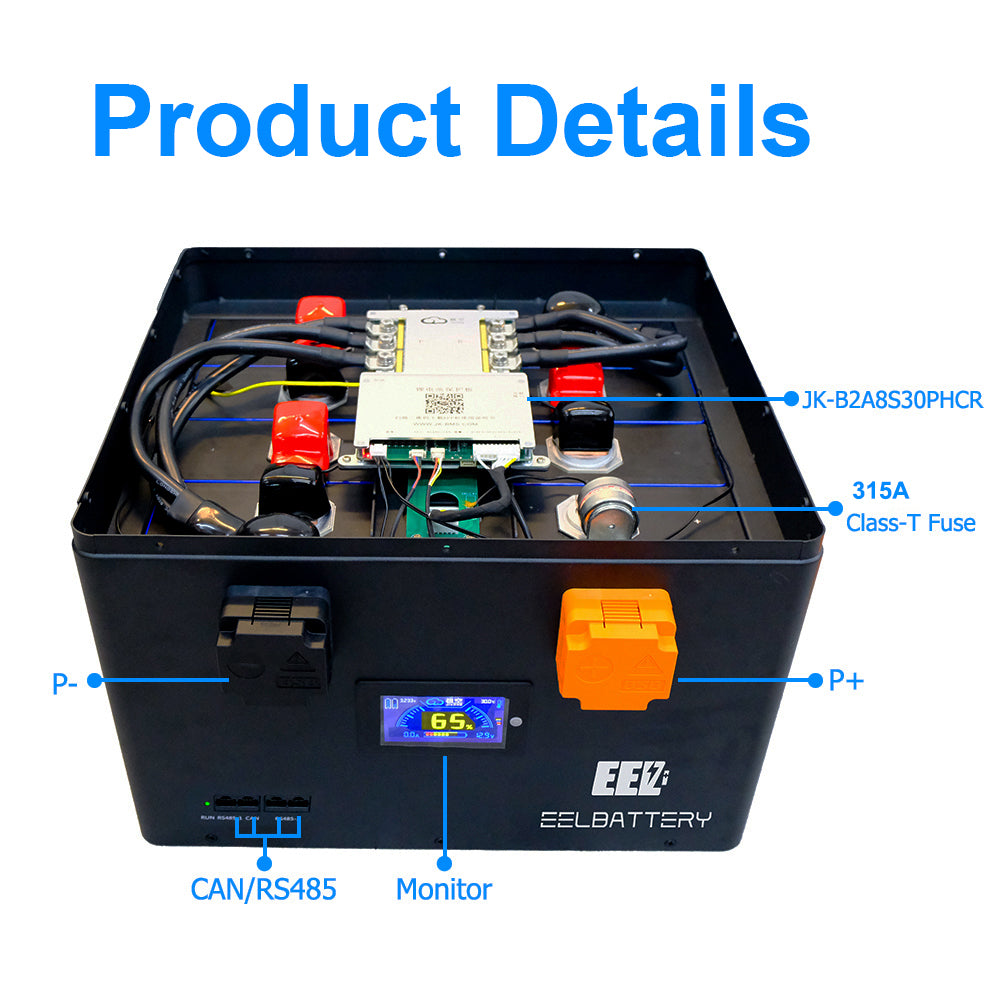

This rugged metal battery enclosure is specifically designed for DIY 12V battery builds, housing four 3.2V EVE MB56 628Ah prismatic cells to provide a secure and portable storage solution for your power system. With dedicated internal space for a BMS (Battery Management System) and fuse installation, it is an ideal choice for DIY LiFePO4 battery projects.
Key Features:
- Rugged Construction: Welded steel structure designed to protect your battery cells.
- Interior Space: Ample room for installing a BMS and fuse.
- Portability: Easy to transport for reliable power wherever needed.
- Includes M8 terminals with stainless steel bolts.
Interior Dimensions:
- Length: 357 mm
- Width: 295 mm
- Height: 210 mm

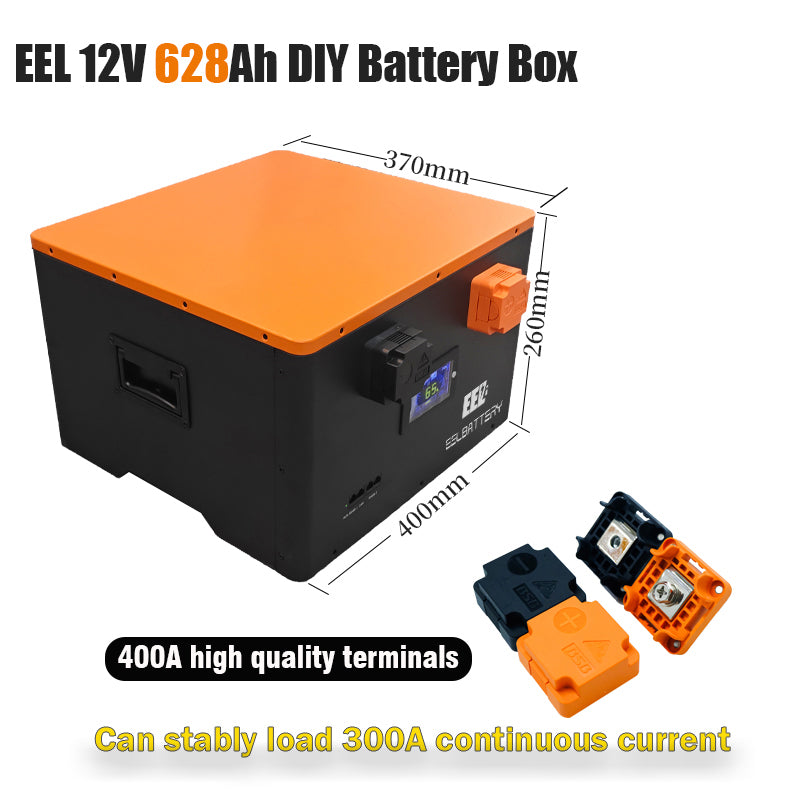

Exterior Dimensions:
- Length: 400 mm
- Width: 370 mm
- Height: 260 mm
Packaging & Shipping
Packaging Details
- High-density custom-cut foam for enhanced battery protection
- 5-ply export-grade corrugated cartons, certified for hazardous materials
- Pre-shipment battery labeling on every unit
- Wooden crating available upon request for added transport security
US/EU Warehouse (US Stock) – Fast Delivery
- DDP (Delivered Duty Paid) service: No extra taxes; door-to-door delivery
- 3-7 day delivery via freight truck, DPD, FedEx, or UPS after dispatch
China DDP Sea Shipping – Cost-Effective Option
- DDP inclusive; no additional taxes; door-to-door delivery
- 45-60 day delivery via sea freight + local carriers (truck/DPD/FedEx/UPS)
Shipping Restrictions
- Unable to deliver to island addresses
Tracking Information
- Tracking updates provided after local carrier pickup
- Contact our support team anytime for assistance
Payment Options
We offer multiple payment methods to meet your needs:
PayPal / Credit Card / Visa: Subject to a 5% international transaction fee. This option ensures faster processing and buyer protection.
Other Online Payment Platforms
Bank Transfer (Wire/TT): Fixed bank fee of approximately $48–100 per transaction (varies by bank). Recommended for large orders to minimize overall transaction costs.
Tip: For high-value purchases, we advise using bank transfers to reduce additional fees. Contact us anytime with payment-related questions.
Additional Information
Brand: EEL BATTERY
Model:EEL-12V-JK-628Ah

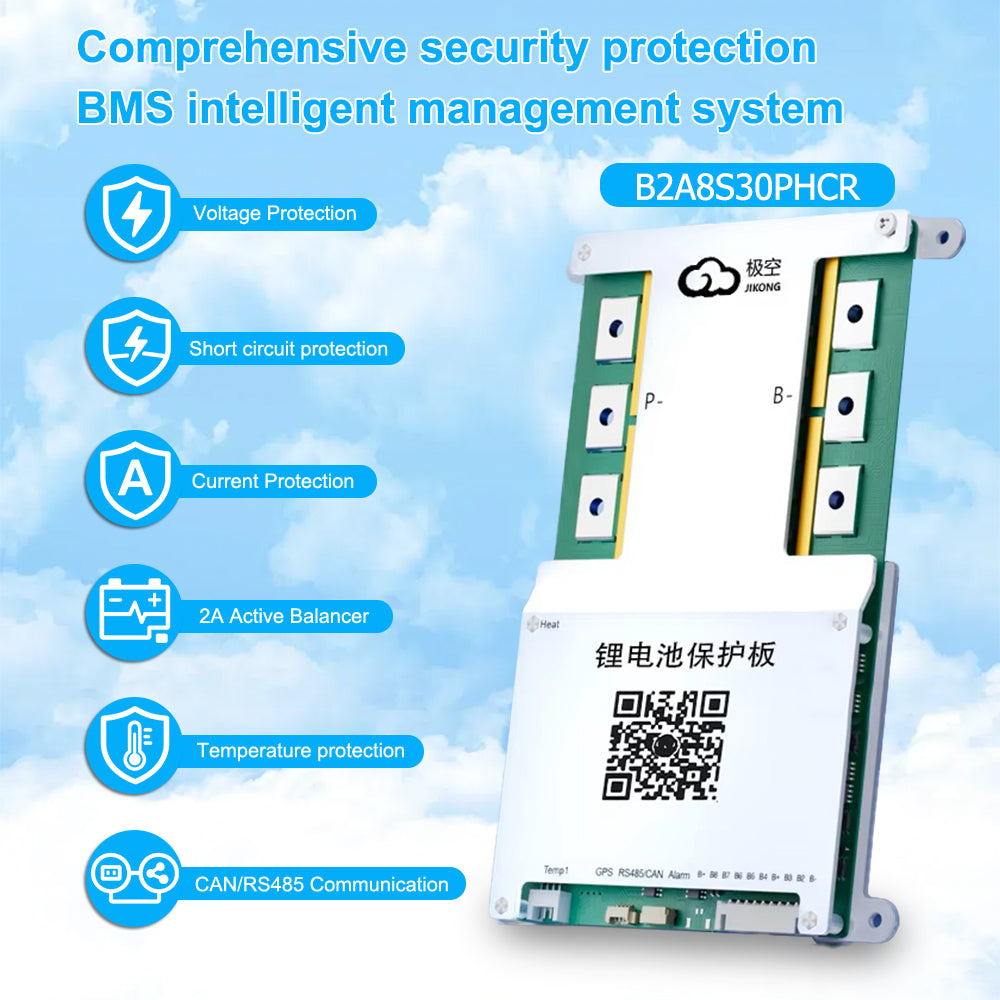

BMS Model: JK-B2A8S30P/B2A8S30PHCR
Applicable Battery Cells: 628Ah(352mm × 72mm × 207mm)
Weight: 19KG

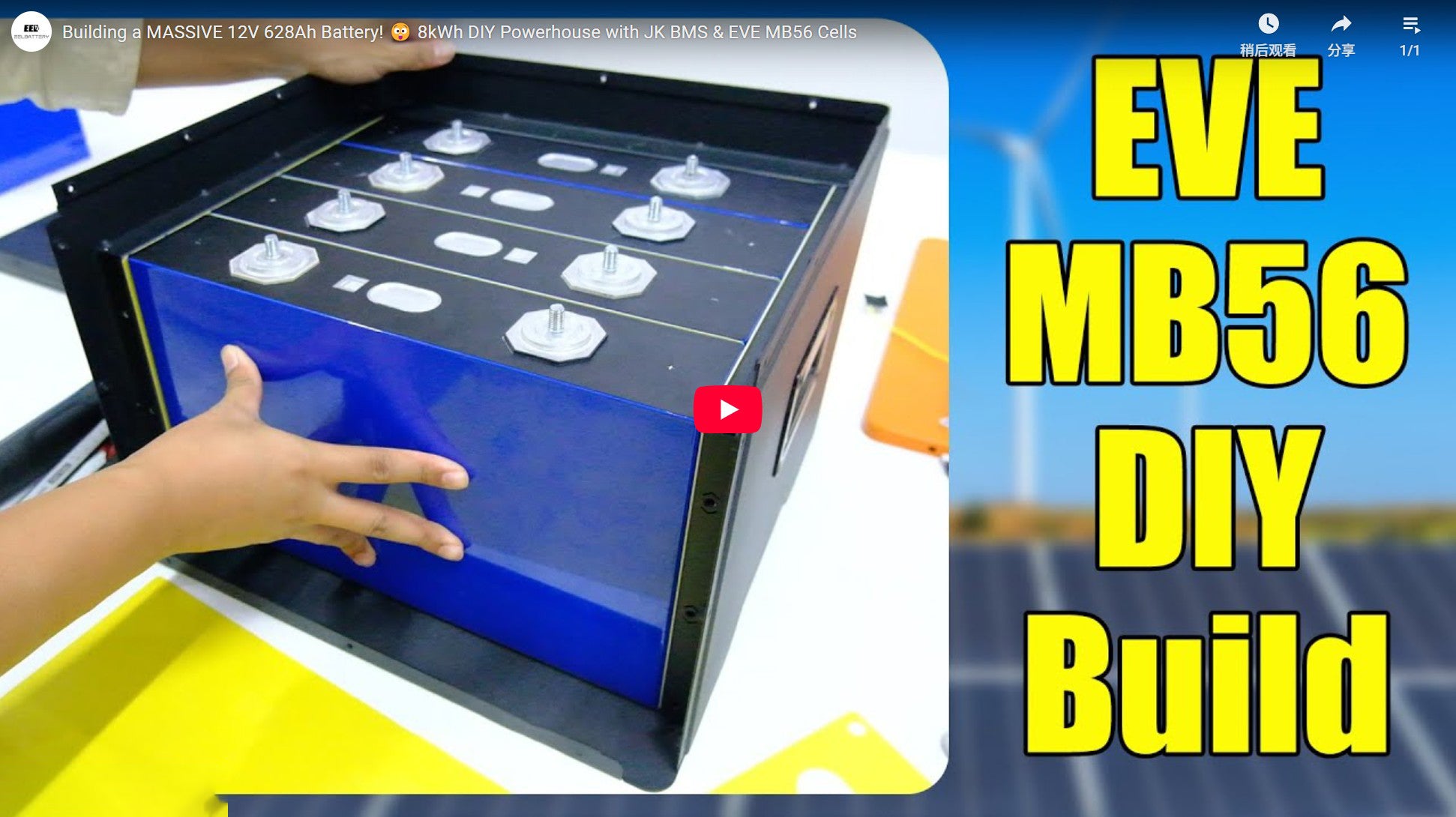

Building a MASSIVE 12V 628Ah Battery! 😲 8kWh DIY Powerhouse with JK BMS & EVE MB56 Cells
Upgrading from Lead-Acid to Lithium Batteries
⚠️ Safety Precautions
- Voltage Match: Ensure the lithium battery pack (e.g., 12V, 24V, 48V) matches the original system's nominal voltage exactly.
- BMS is Essential: The lithium battery pack must be equipped with a dedicated Battery Management System (BMS) to provide protection against overcharge, over-discharge, overcurrent, and temperature extremes.
- Charger Replacement: You must use a dedicated charger compatible with the lithium battery chemistry (e.g., LiFePO4). Never use the original lead-acid battery charger directly, as it may cause a fire hazard.
- Space & Ventilation: While lithium batteries are often more compact, ensure the installation location is well-ventilated and the battery is securely mounted.
🔧 Core Steps for Conversion
- System Assessment: Confirm the voltage, continuous power, and peak current requirements of your application (e.g., RV, boat, solar storage system, golf cart).
- Battery Selection:Type: Lithium Iron Phosphate (LiFePO4) batteries are the preferred choice for conversion due to their high safety, long cycle life (typically 2000+ cycles), and temperature tolerance.Capacity: Based on your lead-acid battery's Amp-hour (Ah) capacity, you can select a lithium battery of equal or greater capacity for extended runtime.Integration: Choose a "plug-and-play" style lithium battery pack with a built-in case, BMS, and terminals for simplified installation.
- Upgrade Charging System: Purchase or adjust all charging equipment (including solar charge controllers, onboard chargers) so their output parameters fully match the lithium battery's requirements.
- Installation & Connection:Disconnect all power sources.Remove the old lead-acid batteries and charger.Install the new lithium battery pack, connecting the positive and negative terminals correctly as per instructions (usually positive first, then negative).Install and connect the new charger.
- Testing & Commissioning: Reconnect power, test voltage under no load, then conduct a low-load operational test to ensure the BMS and system are functioning normally.
💎 Key Benefits of Upgrading
- Lighter Weight: Approximately 1/3 the weight of an equivalent lead-acid battery.
- Longer Lifespan: Cycle life can be 5-8 times longer than lead-acid batteries.
- Higher Usable Capacity: Safely utilize 80%-90% of the rated capacity, compared to typically 50% for lead-acid.
- Faster Charging: Supports higher charge currents, significantly reducing recharge time.
- Low Maintenance: Virtually maintenance-free, with no need for regular watering.
📞 Professional Recommendation
For complex electrical systems (e.g., RVs, off-grid solar), we strongly recommend consulting with a qualified technician for assessment and installation to ensure system compatibility and safety.
(A perfect example is our solution: using the EEL 12V MB56 Battery Case paired with EVE MB56 cells to build a high-performance 12V/660Ah LiFePO4 system.)
